B71L Liftgate Object Sensor - Left (TC2)
WARNING: This page is about a different car, the 2018 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

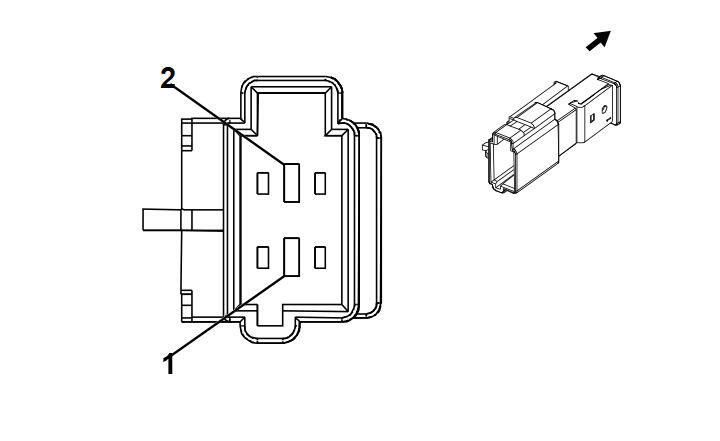

Connector Part Information
- Harness Type: Liftgate
- OEM Connector: 19179872
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way M 1.6 Timer Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-34 (YE) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
GY/BK |
5802 |
Lift Gate Object Sensor Signal |
I |
- |
| 2 |
0.35 |
WH/BK |
6126 |
Lift Gate Object Sensor 2 Signal |
I |
- |
