B176 Multi-axis Acceleration Sensor Module
WARNING: This page is about a different car, the 2018 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

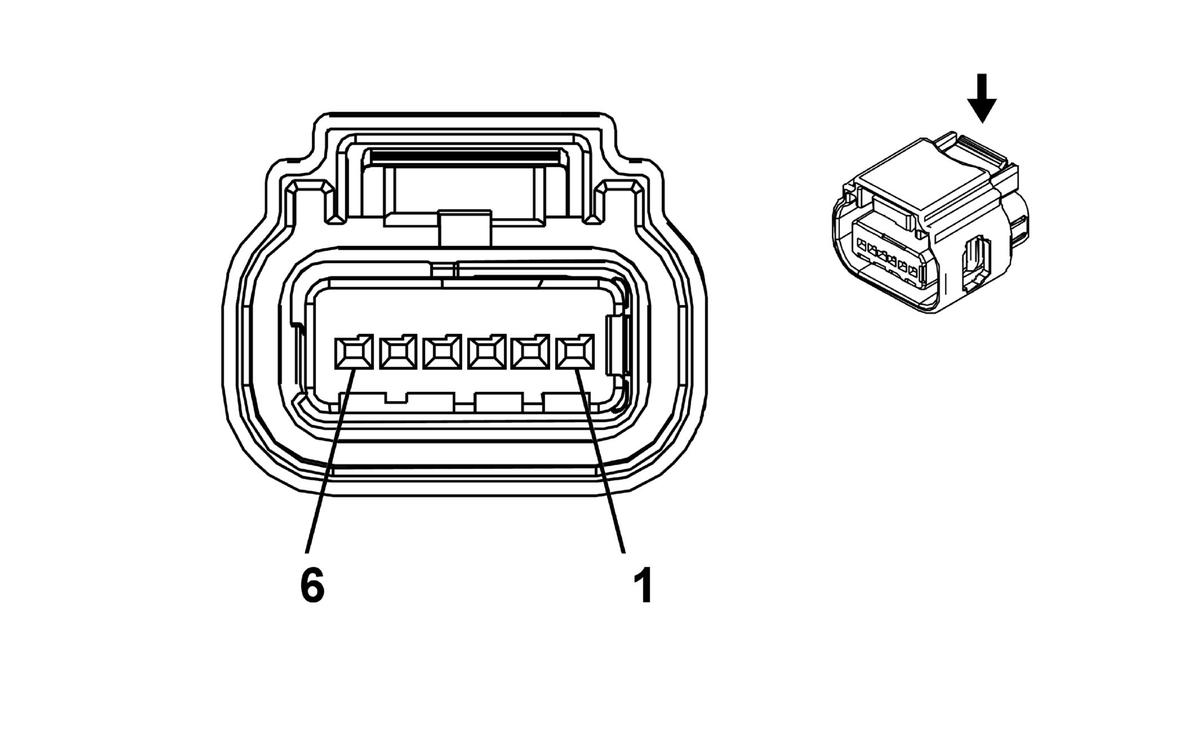

Connector Part Information
- Harness Type: Body
- OEM Connector: 19178520
- Service Connector: 19299684
- Description: 6-Way F 0.64 Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-64B (LT BU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
WH |
6106 |
High Speed GMLAN Serial Data (-) 2 |
I |
KSG |
| 2 |
0.35 |
WH |
6106 |
High Speed GMLAN Serial Data (-) 2 |
I |
KSG |
| 3 |
0.35 |
BU/YE |
6105 |
High Speed GMLAN Serial Data (+) 2 |
I |
KSG |
| 4 |
0.35 |
BU/YE |
6105 |
High Speed GMLAN Serial Data (+) 2 |
I |
KSG |
| 5 |
0.5 |
GN/BN |
2087 |
Combined Vehicle Inertial Sensor Supply Voltage |
I |
KSG |
| 6 |
0.5 |
BK |
2050 |
Ground |
I |
KSG |
