B233B Radar Sensor Module - Long Range
WARNING: This page is about a different car, the 2018 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

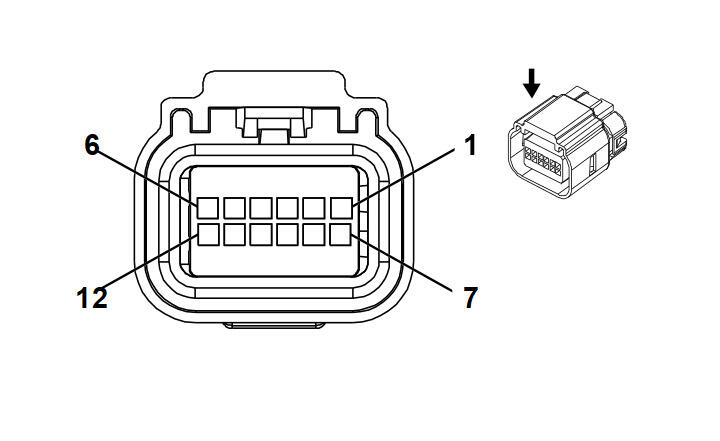

Connector Part Information
- Harness Type: Forward Lamp
- OEM Connector: 13582067
- Service Connector: 19299773
- Description: 12-Way F 1.5 Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
19300649 |
J-35616-16 (LT GN) |
J-38125-553 |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
- |
- |
Not Occupied |
- |
- |
| 2 |
0.5 |
WH |
3811 |
High Speed GMLAN Serial Data (-) 4 |
I |
KSG |
| 3 |
0.5 |
BU/VT |
3813 |
High Speed GMLAN Serial Data (+) 4 |
I |
KSG |
| 4 |
0.5 |
WH |
3811 |
High Speed GMLAN Serial Data (-) 4 |
I |
KSG |
| 5 |
0.5 |
BU/VT |
3813 |
High Speed GMLAN Serial Data (+) 4 |
I |
KSG |
| 6 |
0.5 |
GY/VT |
3808 |
Front Object Sensor Control 2 |
I |
KSG |
| 7 |
0.5 |
BK |
1150 |
Ground |
I |
KSG |
| 8 - 9 |
- |
- |
- |
Not Occupied |
- |
- |
| 10 |
0.5 |
WH |
3811 |
High Speed GMLAN Serial Data (-) 4 |
I |
KSG |
| 11 |
0.5 |
BU/VT |
3813 |
High Speed GMLAN Serial Data (+) 4 |
I |
KSG |
| 12 |
- |
- |
- |
Not Occupied |
- |
- |
