K9 Body Control Module X1
WARNING: This page is about a different car, the 2018 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

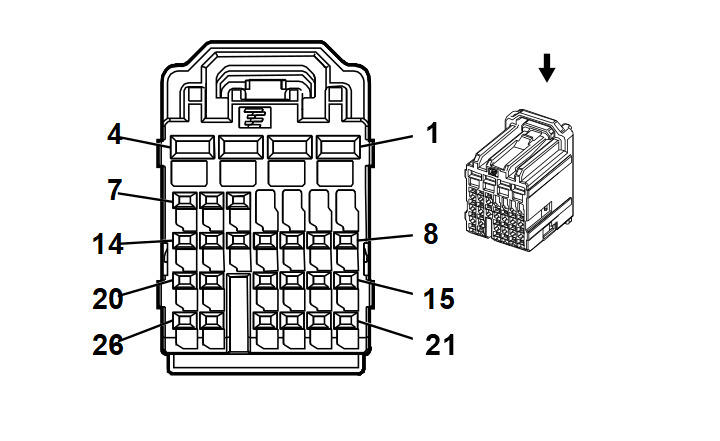

Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 13576031
- Service Connector: 13576031
- Description: 26-Way F 0.64, 2.8 Series (NA)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
13575578 |
J-35616-35 (VT) |
J-38125-553 |
8100-4445 |
Sumitomo 22 |
F |
D |
| II |
13582297 |
J-35616-64B (LT BU) |
J-38125-22 |
Not Available |
Not Available |
Not Available |
Not Available |
| III |
13582326 |
J-35616-35 (VT) |
J-38125-553 |
8100-4444 |
Sumitomo 22 |
2 |
A |
| IV |
19366999 |
J-35616-35 (VT) |
J-38125-553 |
8100-4443 |
Sumitomo 22 |
E |
A |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
2.5 |
BK |
2250 |
Ground |
I |
- |
| 2 |
1 |
RD/BU |
4540 |
Battery Positive Voltage |
III |
- |
| 3 |
1 |
RD/GN |
4440 |
Battery Positive Voltage |
III |
- |
| 4 |
0.5 |
RD/YE |
4340 |
Battery Positive Voltage |
IV |
- |
| 5 |
0.35 |
WH |
6816 |
Indicator Dimming Control |
II |
- |
| 6 - 8 |
- |
- |
- |
Not Occupied |
- |
- |
| 9 |
0.35 |
WH/BN |
7555 |
Lighting Control Switch Signal |
II |
- |
| 10 - 15 |
- |
- |
- |
Not Occupied |
- |
- |
| 16 |
0.35 |
WH/VT |
103 |
Headlamp Switch On Signal |
II |
- |
| 17 - 18 |
- |
- |
- |
Not Occupied |
- |
- |
| 19 |
0.35 |
BK/BN |
5360 |
Brake Apply Sensor Low Reference |
II |
- |
| 20 |
0.5 |
BU/BK |
5719 |
Ignition Mode Switch Start LED Signal |
II |
- |
| 21 |
0.35 |
GY |
728 |
Security Indicator Control |
II |
- |
| 22 |
0.35 |
GN/GY |
13 |
Headlamp Switch Park Lamp Signal |
II |
- |
| 23 |
- |
- |
- |
Not Occupied |
- |
- |
| 24 |
0.35 |
WH |
2501 |
High Speed GMLAN Serial Data (-) 1 |
II |
- |
| 25 |
0.35 |
BU |
2500 |
High Speed GMLAN Serial Data (+) 1 |
II |
- |
| 26 |
0.35 |
BU/WH |
3275 |
Remote Function Actuator Receive Signal |
II |
- |
