K17 Electronic Brake Control Module

WARNING: This page is about a different car, the 2018 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.

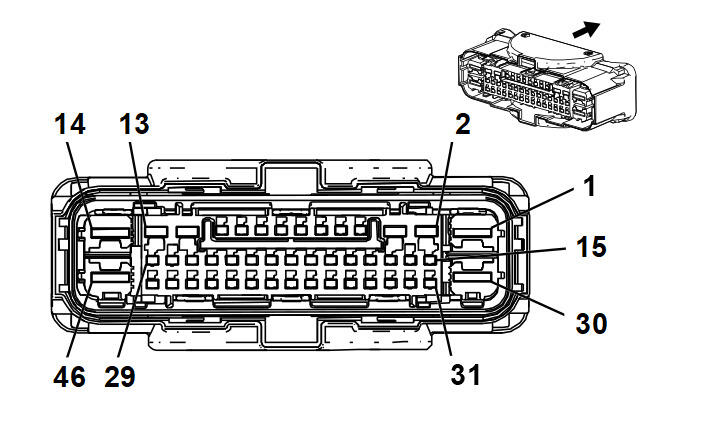

GM3960473Courtesy of GENERAL MOTORS COMPANY
Connector Part Information
  • Harness Type: Body
  • OEM Connector: 13582922
  • Service Connector: 19333357
  • Description: 46-Way F 1.2, 2.8, 5.8 Series, Sealed (BK)
Terminal Part Information

Terminal Type ID Terminated Lead Diagnostic Test Probe Terminal Removal Tool Service Terminal Tray Name Core Crimp Insulation Crimp
I 19300444 J-35616-16 (LT GN) J-38125-12A Not Available Not Available Not Available Not Available
II 19300445 J-35616-16 (LT GN) J-38125-12A Not Available Not Available Not Available Not Available
III 19330700 J-35616-35 (VT) J-38125-22 Not Available Not Available Not Available Not Available
IV 19369189 J-35616-40 (BU) J-38125-22 Not Available Not Available Not Available Not Available
Pin Size Color Circuit Function Terminal Type ID Option
1 4 RD/VT 340 Battery Positive Voltage IV -
2 2.5 GN/VT 1988 Park Brake Motor Apply Right Rear Control III -
3 2.5 GY 4368 Park Brake Motor Low Reference Right Rear III -
4 0.5 YE 872 Wheel Speed Sensor Signal Right Front II -
5 0.5 GY/BN 7065 Wheel Speed Sensor Control Right Front II -
6 0.5 BU 884 Wheel Speed Sensor Signal Left Rear II -
7 0.5 GY/BK 7127 Wheel Speed Sensor Control Left Rear II -
8 0.5 GY 830 Wheel Speed Sensor Signal Left Front II -
9 0.5 GY/WH 7064 Wheel Speed Sensor Control Left Front II -
10 0.5 VT 882 Wheel Speed Sensor Signal Right Rear II -
11 0.5 GY/YE 7128 Wheel Speed Sensor Control Right Rear II -
12 2.5 GY/BK 4369 Park Brake Motor Low Reference Left Rear III -
13 2.5 WH 2001 Park Brake Motor Apply Left Rear Control III -
14 4 BK 1450 Ground IV -
15 0.5 GN/BN 2087 Combined Vehicle Inertial Sensor Supply Voltage II KSG
16 - - - Not Occupied - -
17 0.35 YE 1492 Park Brake Switch Supply Voltage I -
18 0.35 GY/RD 7684 Park Brake Apply Switch Voltage Reference I -
19 0.35 BU/VT 1134 Park Brake Switch Signal I -
20 0.5 GN/GY 333 Brake Fluid Level Sensor Signal II -
21 - 22 - - - Not Occupied - -
23 0.35 BU/BK 6108 Park Brake Release Switch Signal I -
24 0.35 BN 6107 Park Brake Apply Switch Signal I -
25 0.35 YE/RD 7683 Park Brake Release Switch Voltage Reference I -
26 - 29 - - - Not Occupied - -
30 2.5 RD/WH 342 Battery Positive Voltage IV -
31 - - - Not Occupied - -
32 0.35 BU/YE 6105 High Speed GMLAN Serial Data (+) 2 I -
33 0.35 WH 6106 High Speed GMLAN Serial Data (-) 2 I -
34 - - - Not Occupied - -
35 0.35 WH/BU 5986 Serial Data Communication Enable I -
36 - 40 - - - Not Occupied - -
41 0.35 BU 2500 High Speed GMLAN Serial Data (+) 1 I -
42 0.35 BU 2500 High Speed GMLAN Serial Data (+) 1 I -
43 0.35 WH 2501 High Speed GMLAN Serial Data (-) 1 I -
44 0.35 WH 2501 High Speed GMLAN Serial Data (-) 1 I -
45 - 46 - - - Not Occupied - -
