K9 Body Control Module X2
WARNING: This page is about a different car, the 2018 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

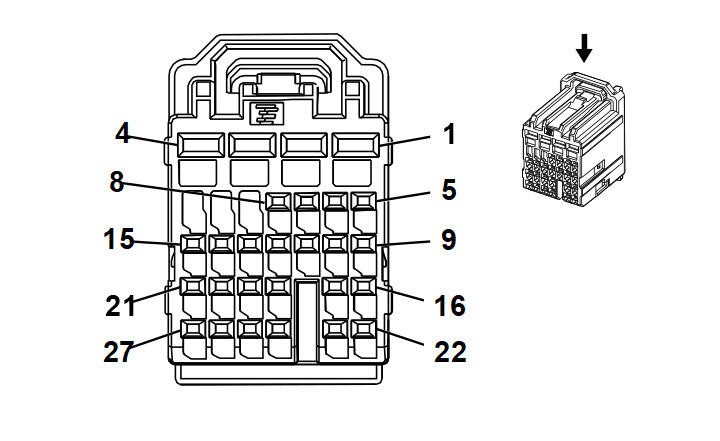

Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 13576032
- Service Connector: 13576032
- Description: 27-Way F 0.64, 2.8 Series (BU)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
13575578 |
J-35616-35 (VT) |
J-38125-553 |
8100-4445 |
Sumitomo 22 |
F |
D |
| II |
13582297 |
J-35616-64B (LT BU) |
J-38125-22 |
Not Available |
Not Available |
Not Available |
Not Available |
| III |
13582326 |
J-35616-35 (VT) |
J-38125-553 |
8100-4444 |
Sumitomo 22 |
2 |
A |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
1 |
RD/GY |
4840 |
Battery Positive Voltage |
III |
- |
| 2 |
2.5 |
BK |
2250 |
Ground |
I |
- |
| 3 |
- |
- |
- |
Not Occupied |
- |
- |
| 4 |
2.5 |
RD/BN |
4940 |
Battery Positive Voltage |
I |
- |
| 5 - 6 |
- |
- |
- |
Not Occupied |
- |
- |
| 7 |
0.35 |
BU/YE |
5361 |
Brake Apply Sensor Signal |
II |
- |
| 8 |
0.5 |
YE |
6817 |
LED Backlight Dimming Control |
II |
- |
| 9 |
- |
- |
- |
Not Occupied |
- |
- |
| 10 |
0.35 |
WH/BU |
278 |
Ambient Light Sensor Signal |
II |
- |
| 11 |
- |
- |
- |
Not Occupied |
- |
- |
| 12 |
0.35 |
BN/BU |
391 |
Rear Window Wiper Switch Signal |
II |
- |
| 13 |
0.35 |
WH |
5359 |
Brake Apply Sensor Control |
II |
- |
| 14 |
0.35 |
BU/VT |
1788 |
Traction Control Switch Signal 1 |
II |
- |
| 15 |
0.35 |
BN/WH |
781 |
Driver Door Lock Switch Unlock Signal |
II |
- |
| 16 |
0.35 |
GY |
3273 |
Remote Function Actuator Low Reference |
II |
- |
| 17 - 18 |
- |
- |
- |
Not Occupied |
- |
- |
| 19 |
0.35 |
BN/YE |
780 |
Driver Door Lock Switch Lock Signal |
II |
- |
| 20 - 21 |
- |
- |
- |
Not Occupied |
- |
- |
| 22 |
0.35 |
GN |
5060 |
Low Speed GMLAN Serial Data |
II |
- |
| 23 |
0.35 |
WH |
2501 |
High Speed GMLAN Serial Data (-) 1 |
II |
- |
| 24 |
0.35 |
BU |
2500 |
High Speed GMLAN Serial Data (+) 1 |
II |
- |
| 25 |
0.35 |
GY/WH |
3272 |
Remote Function Actuator Control |
II |
- |
| 26 |
0.35 |
GN/WH |
111 |
Hazard Switch Signal |
II |
- |
| 27 |
0.35 |
YE/GN |
3274 |
Remote Function Actuator Transmit Signal |
II |
- |
