K9 Body Control Module X5

WARNING: This page is about a different car, the 2018 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

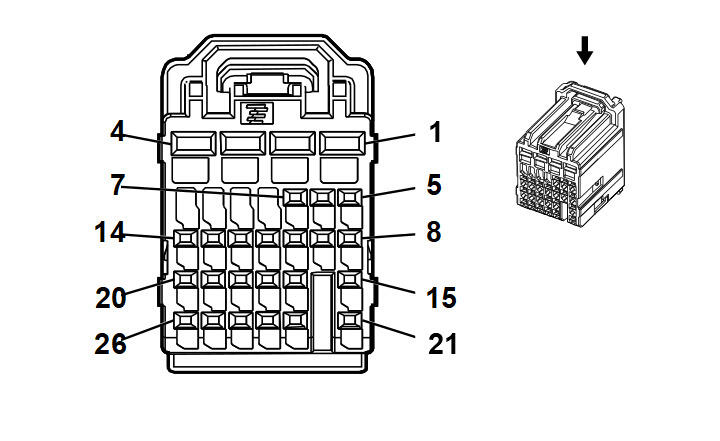

Connector Part Information

Harness Type: Body
OEM Connector: 13576034
Service Connector: 13576034
Description: 26-Way F 0.64, 2.8 Series (BN)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	13582297	J-35616-64B (LT BU)	J-38125-22	Not Available	Not Available	Not Available	Not Available
II	13582326	J-35616-35 (VT)	J-38125-553	8100-4444	Sumitomo 22	2	A
III	13587566	J-35616-64B (LT BU)	J-38125-22	Not Available	Not Available	Not Available	Not Available
IV	19366999	J-35616-35 (VT)	J-38125-553	8100-4443	Sumitomo 22	E	A

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	0.75	BU/WH	1334	Left Rear Turn Signal Lamp Control	II	EF7/CV3/Z49
2	0.5	BU/WH	1314	Left Front Turn Signal Lamp Control	IV	-
3	1	RD/GY	4840	Battery Positive Voltage	II	-
4	1	RD/WH	4740	Battery Positive Voltage	II	-
5 - 6	-	-	-	Not Occupied	-	-
7	0.5	WH/YE	7541	Right Rear Stop Lamp Control	I	-
8	-	-	-	Not Occupied	-	-
9	0.35	GN/WH	2270	Rear Window Washer Relay Control	I	-
10	0.35	BN/WH	1317	Fog Lamp Relay Control	I	-
11	-	-	-	Not Occupied	-	-
12	0.35	WH/BU	6311	Cruise/ETC/TCC Brake Signal	I	-
13	0.75	BN/YE	1970	Headlamp Low Beam Relay Control	III	T4F
14	0.35	VT/BN	300	Run Ignition 3 Voltage	I	UVD
15 - 17	-	-	-	Not Occupied	-	-
18	0.35	BN/VT	1969	Headlamp High Beam Relay Control	I	T4A/T4F
19	0.35	BN/WH	28	Horn Relay Control	I	-
20 - 21	-	-	-	Not Occupied	-	-
22	0.35	BU	45	Park Lamp Relay Control	I	EF7/CV3/Z49
23	-	-	-	Not Occupied	-	-
24	0.35	WH/VT	860	Front Windshield Wiper Switch High Signal	I	-
25 - 26	-	-	-	Not Occupied	-	-
