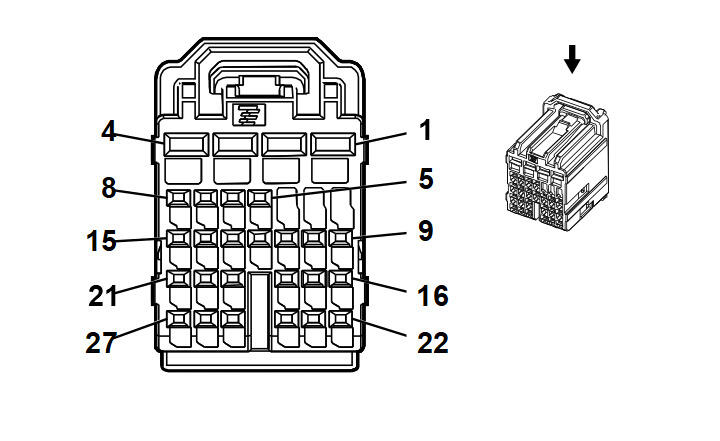

K9 Body Control Module X6
WARNING: This page is about a different car, the 2018 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Body
- OEM Connector: 13576035
- Service Connector: 13576035
- Description: 27-Way F 0.64, 2.8 Series (PK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
13575578 |
J-35616-35 (VT) |
J-38125-553 |
8100-4445 |
Sumitomo 22 |
F |
D |
| II |
13582297 |
J-35616-64B (LT BU) |
J-38125-22 |
Not Available |
Not Available |
Not Available |
Not Available |
| III |
13582326 |
J-35616-35 (VT) |
J-38125-553 |
8100-4444 |
Sumitomo 22 |
2 |
A |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
- |
- |
Not Occupied |
- |
- |
| 2 |
0.75 |
GY/GN |
3271 |
Door Lock Control 2 |
III |
- |
| 3 |
2.5 |
BK |
1550 |
Ground |
I |
- |
| 4 |
0.75 |
BN/YE |
294 |
Door Lock Actuator Unlock Control |
III |
- |
| 5 - 8 |
- |
- |
- |
Not Occupied |
- |
- |
| 9 |
0.35 |
GN/BU |
6133 |
Local Interconnect Network Serial Data Bus 2 |
II |
- |
| 10 - 15 |
- |
- |
- |
Not Occupied |
- |
- |
| 16 |
0.5 |
GN/BN |
6132 |
Local Interconnect Network Serial Data Bus 1 |
II |
- |
| 17 - 21 |
- |
- |
- |
Not Occupied |
- |
- |
| 22 |
0.35 |
GY/GN |
328 |
Interior Lamp Defeat Switch Signal |
II |
- |
| 23 |
- |
- |
- |
Not Occupied |
- |
- |
| 24 |
0.35 |
BU |
2500 |
High Speed GMLAN Serial Data (+) 1 |
II |
- |
| 25 |
0.35 |
WH |
2501 |
High Speed GMLAN Serial Data (-) 1 |
II |
- |
| 26 - 27 |
- |
- |
- |
Not Occupied |
- |
- |
