K9 Body Control Module X7
WARNING: This page is about a different car, the 2018 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

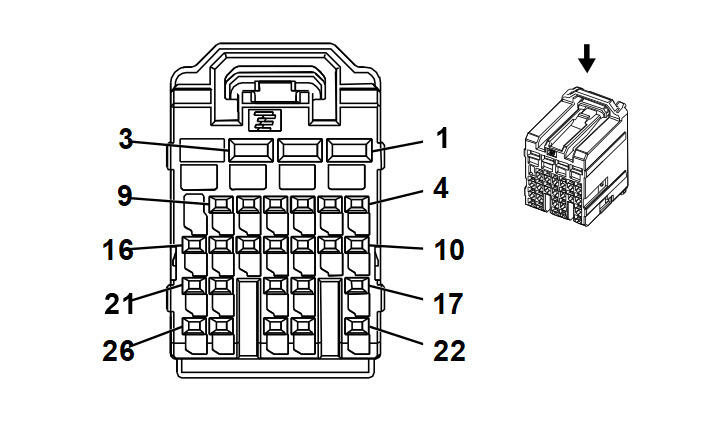

Connector Part Information
- Harness Type: Body
- OEM Connector: 13576036
- Service Connector: 13576036
- Description: 26-Way F 0.64, 2.8 Series (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
13582297 |
J-35616-64B (LT BU) |
J-38125-22 |
Not Available |
Not Available |
Not Available |
Not Available |
| II |
13582326 |
J-35616-35 (VT) |
J-38125-553 |
8100-4444 |
Sumitomo 22 |
2 |
A |
| III |
19366999 |
J-35616-35 (VT) |
J-38125-553 |
8100-4443 |
Sumitomo 22 |
E |
A |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
GY |
157 |
Interior Lamp Control |
III |
- |
| 2 |
0.75 |
GN/WH |
1324 |
Backup Lamp Control |
II |
- |
| 3 |
0.75 |
WH/BN |
6815 |
Inadvertent Power Control |
II |
- |
| 4 |
- |
- |
- |
Not Occupied |
- |
- |
| 5 |
0.35 |
BU/WH |
1334 |
Left Rear Turn Signal Lamp Control |
I |
- |
| 6 |
0.35 |
VT/BK |
7553 |
Park Lock Solenoid Control |
I |
M2D/MHG |
| 7 |
0.5 |
GN/GY |
737 |
Rear Compartment Lid Lamp Control |
I |
- |
| 8 |
0.35 |
BU/VT |
1335 |
Right Rear Turn Signal Lamp Control |
I |
- |
| 9 |
0.5 |
YE |
6817 |
LED Backlight Dimming Control |
I |
- |
| 10 - 11 |
- |
- |
- |
Not Occupied |
- |
- |
| 12 |
0.35 |
BN/WH |
3269 |
Child Security Lock Motor Status Signal Left Rear |
I |
- |
| 13 |
0.5 |
WH/VT |
5905 |
Key Capture/Column Lock Shift Position Signal |
I |
M2D/MHG |
| 14 - 15 |
- |
- |
- |
Not Occupied |
- |
- |
| 16 |
0.5 |
VT/BU |
3263 |
Logistic Mode Relay Open Control |
I |
EF7/CV3/Z49/UEU/UHX/KSG |
| 17 |
- |
- |
- |
Not Occupied |
- |
- |
| 18 |
0.35 |
GY/BK |
3268 |
Child Security Lock Motor Status Signal Right Rear |
I |
- |
| 19 |
0.35 |
GY |
156 |
Courtesy Lamp Switch Signal |
I |
- |
| 20 |
- |
- |
- |
Not Occupied |
- |
- |
| 21 |
0.35 |
YE/VT |
244 |
Passenger Door Lock Switch Lock Control |
I |
- |
| 22 |
0.35 |
WH/YE |
7557 |
LED Ambient Lighting Control 1 |
I |
- |
| 23 |
0.35 |
GN |
5060 |
Low Speed GMLAN Serial Data |
I |
- |
| 24 |
0.35 |
BN/VT |
245 |
Passenger Door Lock Switch Unlock Control |
I |
- |
| 25 - 26 |
- |
- |
- |
Not Occupied |
- |
- |
