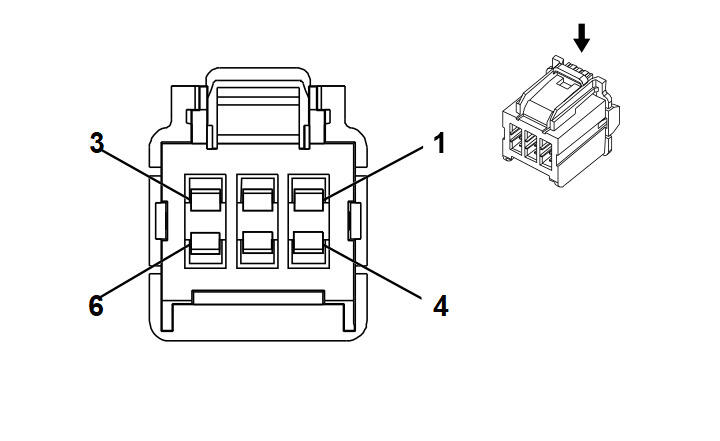

K39 Liftgate Control Module X2 (TC2)
WARNING: This page is about a different car, the 2018 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Liftgate
- OEM Connector: 13583929
- Service Connector: Service by Harness - See Part Catalog
- Description: 6-Way F 280 GT Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-2A (GY) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| II |
Not Required |
J-35616-4A (PU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
1 |
BU/GY |
5791 |
Lift Gate Cinch Latch Motor Close Control |
II |
- |
| 2 |
1 |
BN |
5790 |
Lift Gate Cinch Latch Motor Open Control |
II |
- |
| 3 |
2.5 |
RD/GY |
2140 |
Battery Positive Voltage |
II |
- |
| 4 |
0.5 |
RD/YE |
5840 |
Battery Positive Voltage |
I |
- |
| 5 |
- |
- |
- |
Not Occupied |
- |
- |
| 6 |
2.5 |
BK |
2550 |
Ground |
II |
- |
