K56 Serial Data Gateway Module X2
WARNING: This page is about a different car, the 2018 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

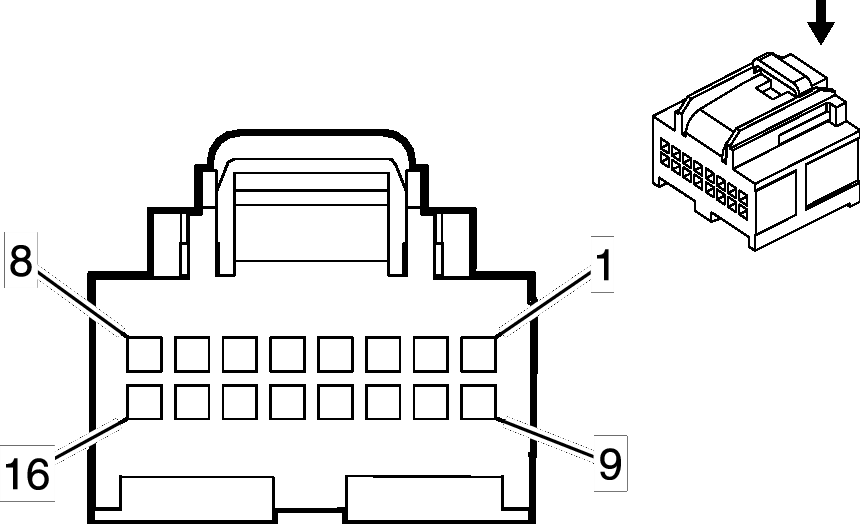

Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 13582575
- Service Connector: 13582575
- Description: 16-Way F 0.64 OCS Series (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
13587581 |
J-35616-64B (LT BU) |
J-38125-12A |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
BU |
2500 |
High Speed GMLAN Serial Data (+) 1 |
I |
- |
| 2 |
0.35 |
WH |
2501 |
High Speed GMLAN Serial Data (-) 1 |
I |
- |
| 3 - 8 |
- |
- |
- |
Not Occupied |
- |
- |
| 9 |
0.35 |
GN |
5060 |
Low Speed GMLAN Serial Data |
I |
- |
| 10 - 16 |
- |
- |
- |
Not Occupied |
- |
- |
