Section 64 (Keyless Entry System And Remote Functions)
>>
Schematic Wiring Diagrams
>>
Remote Function Wiring Schematics
>>
Keyless Entry - Passive and Keyless Start
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

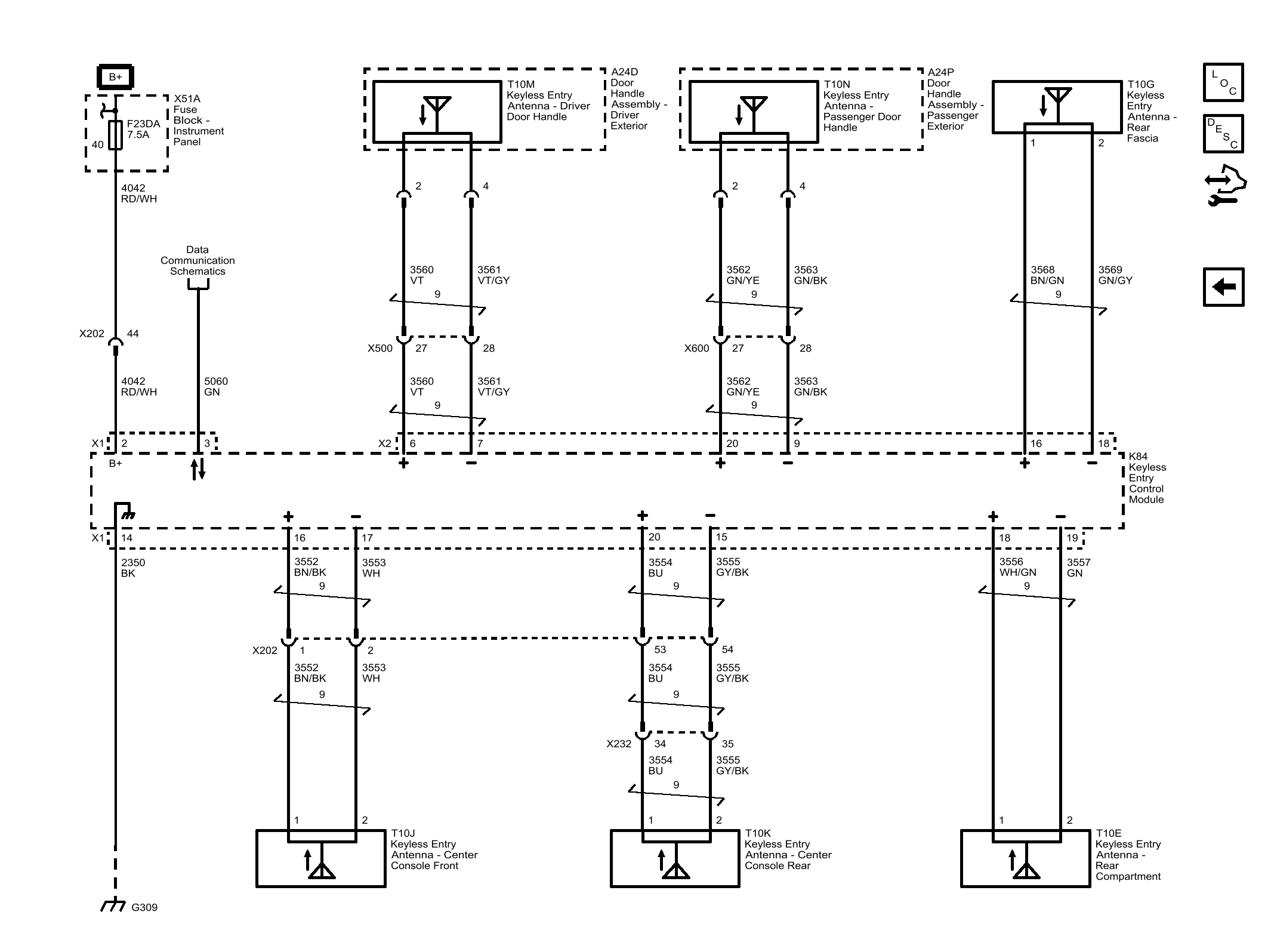

Keyless Entry - Passive and Keyless Start
WARNING:
This page is about a different car, the 2018 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY
