Human Machine Interface Control Module Bypass Module Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Instrument Panel Carrier Replacement

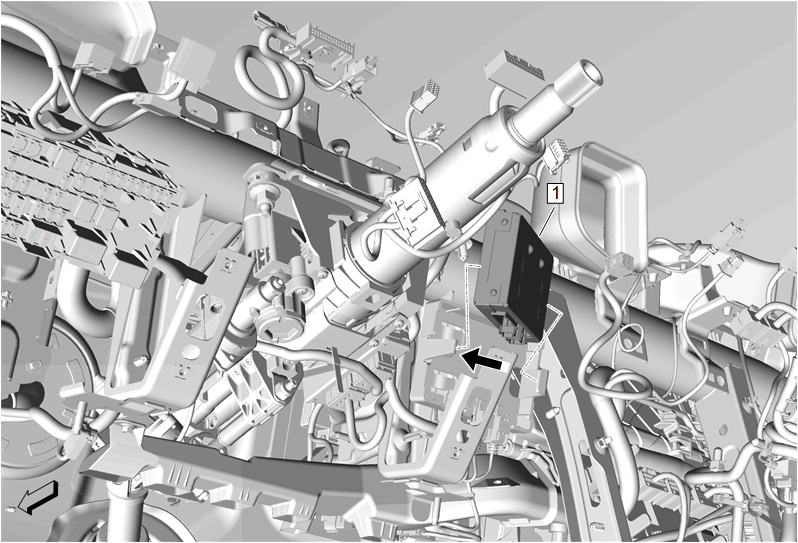

1	Human Machine Interface Control Module Bypass Module Procedure Disconnect the electrical connectors. Push tab to release the module from the bracket and rotate module rearward to remove. Install module into bracket an rotate module forward to snap into tab.

Callout

Component Name

Human Machine Interface Control Module Bypass Module

Procedure

Disconnect the electrical connectors.
Push tab to release the module from the bracket and rotate module rearward to remove.
Install module into bracket an rotate module forward to snap into tab.
