Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

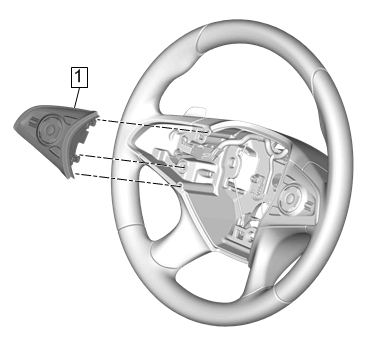

Install the cruise control switch (1):
1. Connect the electrical connector.
2. Position the cruise control switch on the steering wheel.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

Cruise Control Switch Bolt (2) - Install and tighten 1.5 N.m (13 lb in)

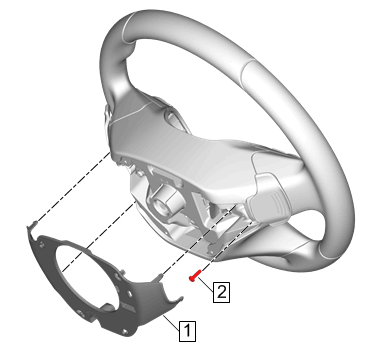

Install the steering wheel back cover (1):
1. {If equipped} {UVD} Connect the electrical connectors.
2. Position the steering wheel back cover on the steering wheel.
3. Ensure ALL of the retaining tabs are locked in place.
Steering Wheel - Install - Steering Wheel Replacement
