Door Lock Switch Replacement - Passenger Front

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Side Door Trim-Right Side - Remove - Front Side Door Trim Replacement

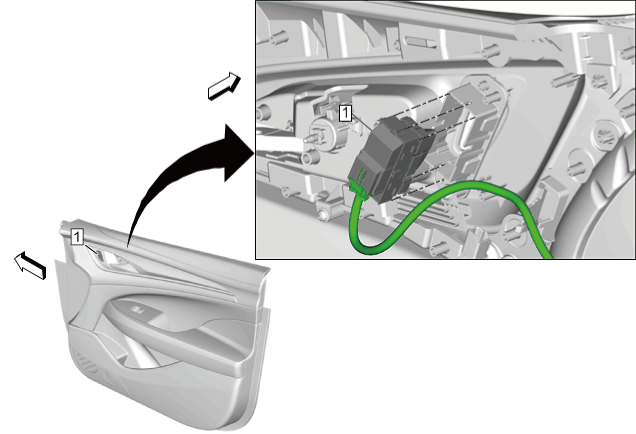

1	Door Lock Switch Procedure Disconnect the electrical connector. From the backside of the door trim panel, use a plastic trim tool to gently push in on the side tabs to release the switch from the front side door trim.

Callout

Component Name

Preliminary Procedure
Front Side Door Trim-Right Side - Remove - Front Side Door Trim Replacement

Door Lock Switch

Procedure

Disconnect the electrical connector.
From the backside of the door trim panel, use a plastic trim tool to gently push in on the side tabs to release the switch from the front side door trim.
