Installation Procedure
Battery Monitor Module (2) - Install
- Battery Post Negative Cable Clamp Nut (1) - Install and tighten 5 N.m (44 lb in)
Battery Negative Cable (4) - Install
- Place a suitable open ended wrench on the battery sensor terminal, to prevent damage to the battery sensor. (2)
- Battery Negative Cable Nut (1) - Install and tighten 16 N.m (12 lb ft)
- Electrical Connector (3) - Connect

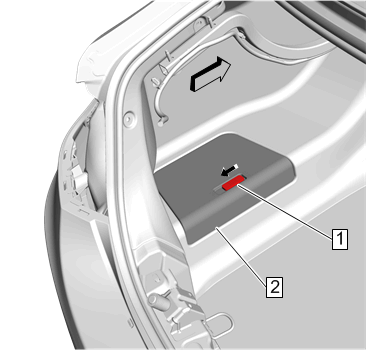

Rear Compartment Side Trim Panel Access Hole Cover (2) - Close
- Rear Compartment Side Trim Panel Access Hole Cover Latch (1) - Close
- Perform the battery sensor learn procedure. Battery Sensor Module Learn
CAUTION:
Refer to Fastener Caution
