Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Drive Motor Power Inverter Module Shield (2) - Install

CAUTION:

Drive Motor Power Inverter Module Shield Bolt (1) - Install and tighten [2x] 9 N.m (80 lb in)
Courtesy of GENERAL MOTORS COMPANY

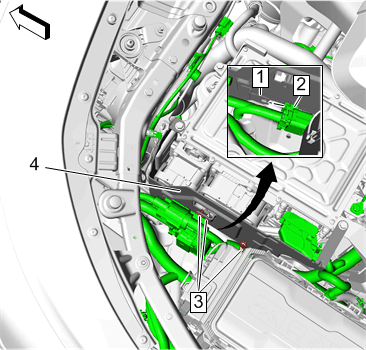

Electrical Connector (2) @ Retaining Tab (1) - Engage
Retainer (3) @ Drive Motor Power Inverter Module Shield (4) - Engage [3x]
Courtesy of GENERAL MOTORS COMPANY

Drive Motor Power Inverter Module Cover (3) - Install - Drive Motor Power Inverter Module Cover Replacement
