Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

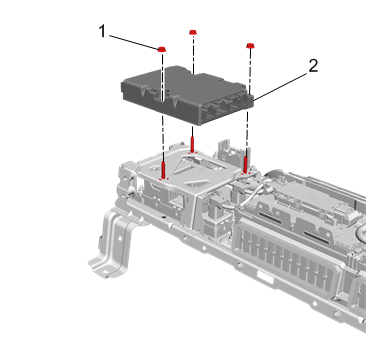

Hybrid Powertrain Control Module 2 (2) - Install

CAUTION:

Hybrid Powertrain Control Module 2 Mounting Nut (1) - Install and tighten [3x] 9 N.m (80 lb in)
Courtesy of GENERAL MOTORS COMPANY

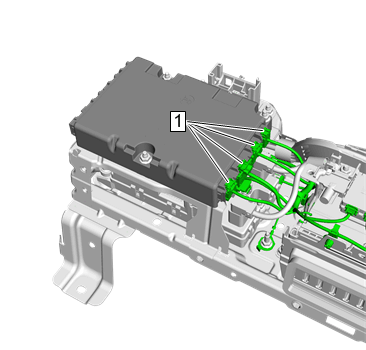

Electrical Connector (1) - Connect [4x]
Courtesy of GENERAL MOTORS COMPANY

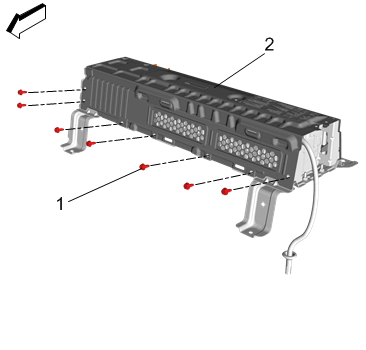

High Voltage Battery Cover (2) - Install - High Voltage Battery Cover Replacement (High Voltage Cables)High Voltage Battery Cover Replacement (High Voltage Battery)
Courtesy of GENERAL MOTORS COMPANY

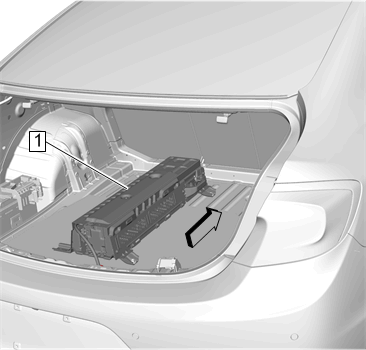

High Voltage Battery (1) - Install - High Voltage Battery Replacement and Shipping Preparation
Reprogram the hybrid powertrain control module 2. Control Module References
