Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Install the electronic suspension control module (1) until it is fully seated into the electronic suspension control module bracket (2) and secured by the tab as indicated.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

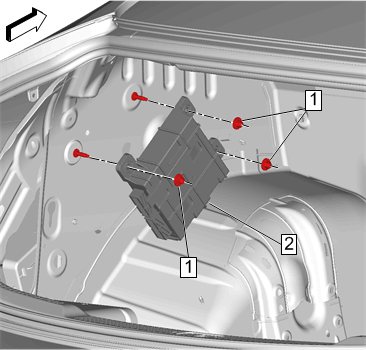

Electronic Suspension Control Module (2) - Install
Electronic Suspension Control Module Bracket Nut (1) [3x] - Install and tighten 2.5 N.m (22 lb in)
Electrical Connector @ Electronic Suspension Control Module - Connect
Rear Compartment Side Trim @ Left Side - Install - Rear Compartment Side Trim Replacement - Left Side (With LHN) , or Rear Compartment Side Trim Replacement - Left Side (With LGX)
Program the electronic suspension control module. Control Module References
