Installation Procedure

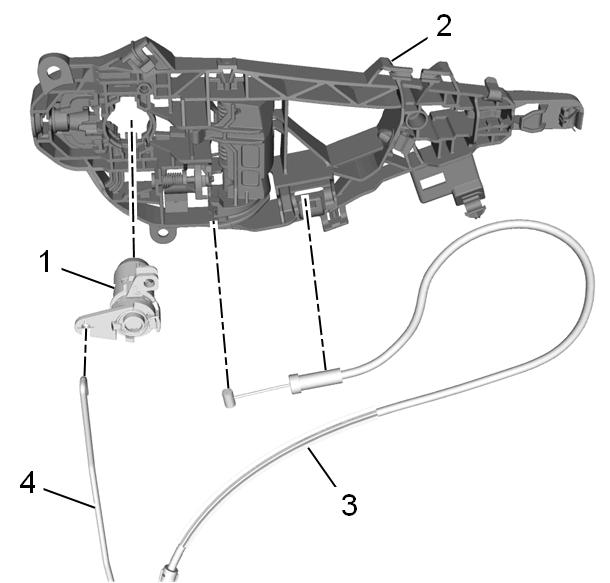

  1. GM4632733Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Lock Cylinder (1) - Install

  2. Front Side Door Lock Cylinder Rod (4) - Install
  3. Front Side Door Outside Handle Cable (3) - Install
  4. Front Side Door Outside Handle Bracket (2) - Install
  5. Front Side Door Latch - Install - Front Side Door Latch Replacement
