Rear Side Door Locking Rod Bellcrank Rod Replacement

Courtesy of GENERAL MOTORS COMPANY

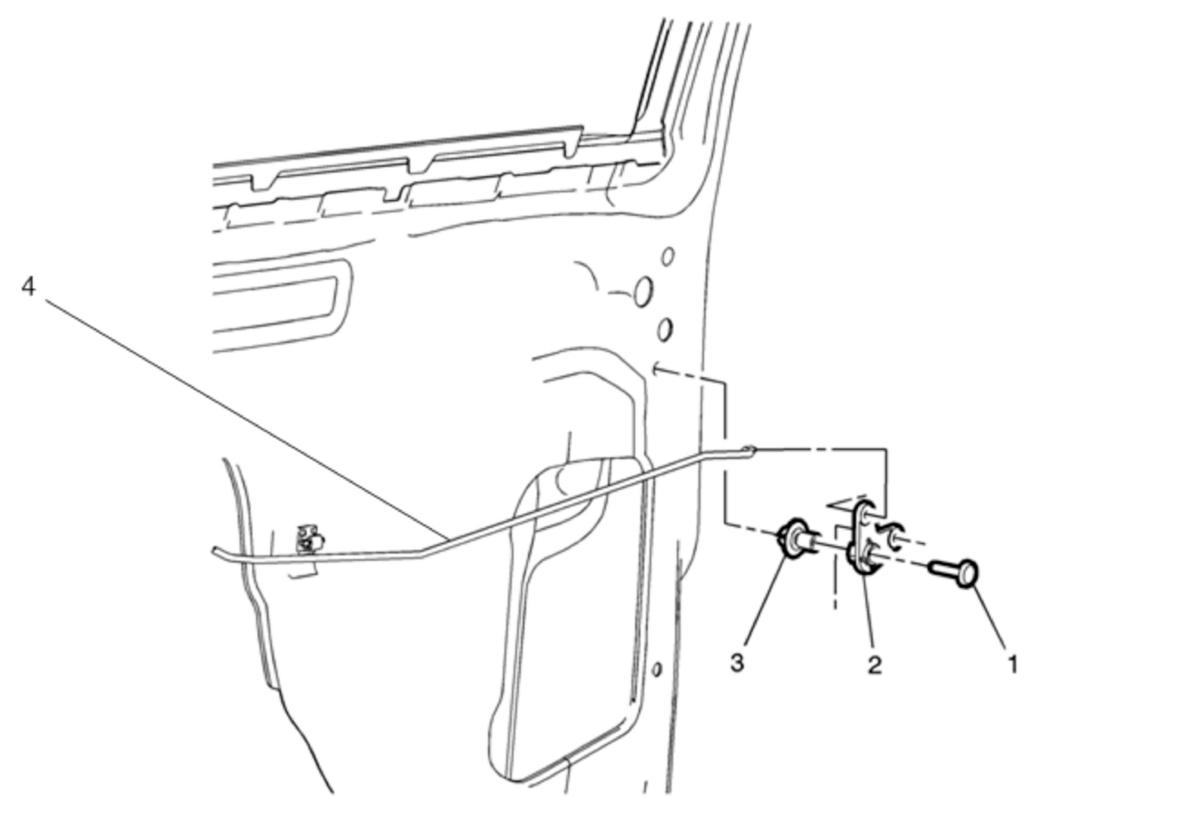

Callout	Component Name
Preliminary Procedures Remove the rear side door trim. Refer to Rear Side Door Trim Replacement .
1	Rear Side Door Locking Rod Bellcrank Center Retainer Procedure Place the window in the full up position. Remove the water deflector. NOTE: Use a small flat-bladed tool to release the retainer from the center of the bellcrank.
2	Rear Side Door Locking Rod Bellcrank Center
3	Rear Side Door Locking Rod Bellcrank Retainer to Door NOTE: Inspect the door lock system for proper operation before installing the door trim.
4	Rear Side Door Locking Rod Bellcrank Rod
