Windshield Washer Solvent Container Level Sensor Replacement

WARNING: This page is about a different car, the 2020 Buick Regal TourX, 2020 Buick Regal, 2019 Buick Regal TourX, and 2019 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

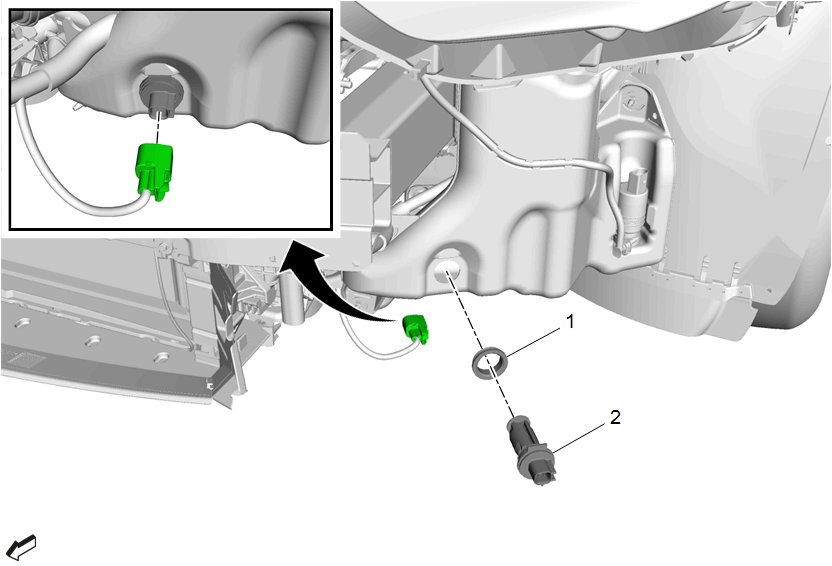

GM4626843Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Front Bumper Fascia Replacement
1 Windshield Washer Solvent Container Level Sensor Grommet
2 Windshield Washer Solvent Container Level Sensor
Procedure
Disconnect the electrical connector.
