Body Control Module Bracket Replacement

WARNING: This page is about a different car, the 2020 Buick Regal TourX, 2020 Buick Regal, 2019 Buick Regal TourX, and 2019 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

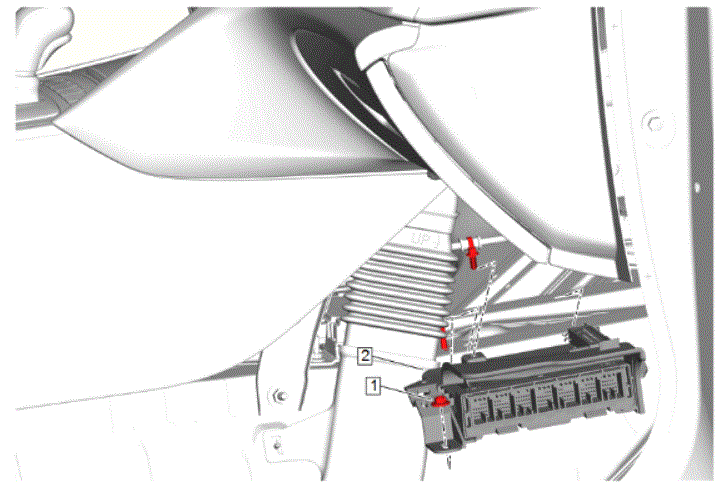

Callout	Component Name
Preliminary Procedures Instrument Panel Compartment Air Duct Replacement (K4C Front) , or Instrument Panel Compartment Air Duct Replacement (K4C Rear) Air Conditioning Evaporator and Blower Module Drain Hose Replacement
1	Body Control Module Bracket Nut CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Body Control Module Bracket Procedure Disconnect the electrical connectors and detach the wiring harness as necessary. Disconnect the automatic transmission range selector lever cable from the body control module bracket. Transfer components as necessary.
