Installation Procedure
Electronic Brake Control Module (1) - Install

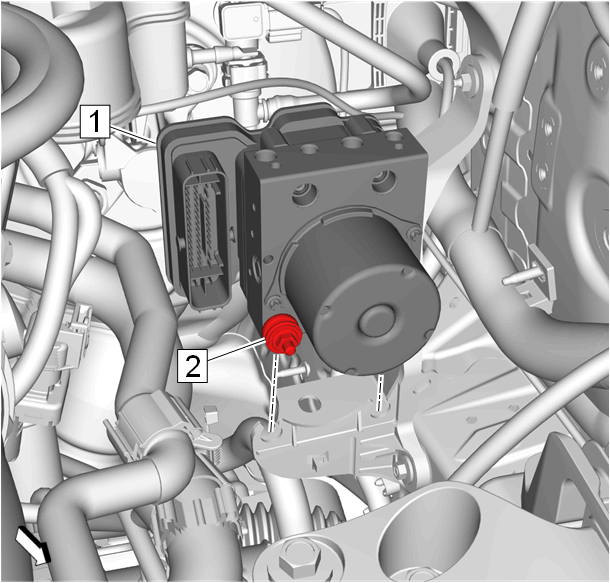

- Nut (2) @ Electronic Brake Control Module - Tighten [2x] 9 N.m (80 lb in)
Remove the caps or plugs from the brake pipe fitting and the brake pressure modulator valve.

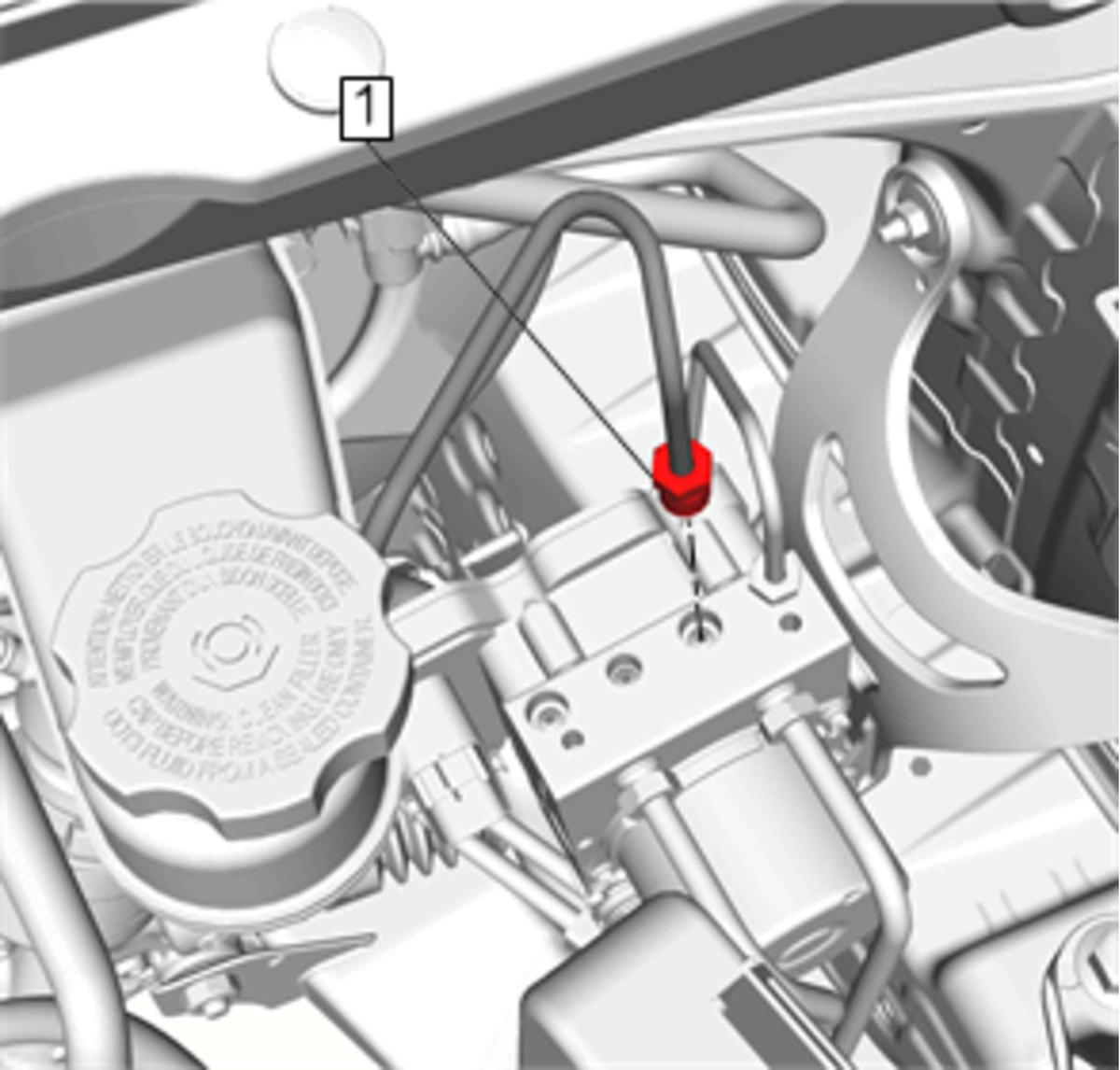

- Brake Pressure Modulator Valve Primary Pipe Fitting (1) - Install and tighten 32 N.m (24 lb ft)
Remove the caps or plugs from the brake pipe fitting and the brake pressure modulator valve.

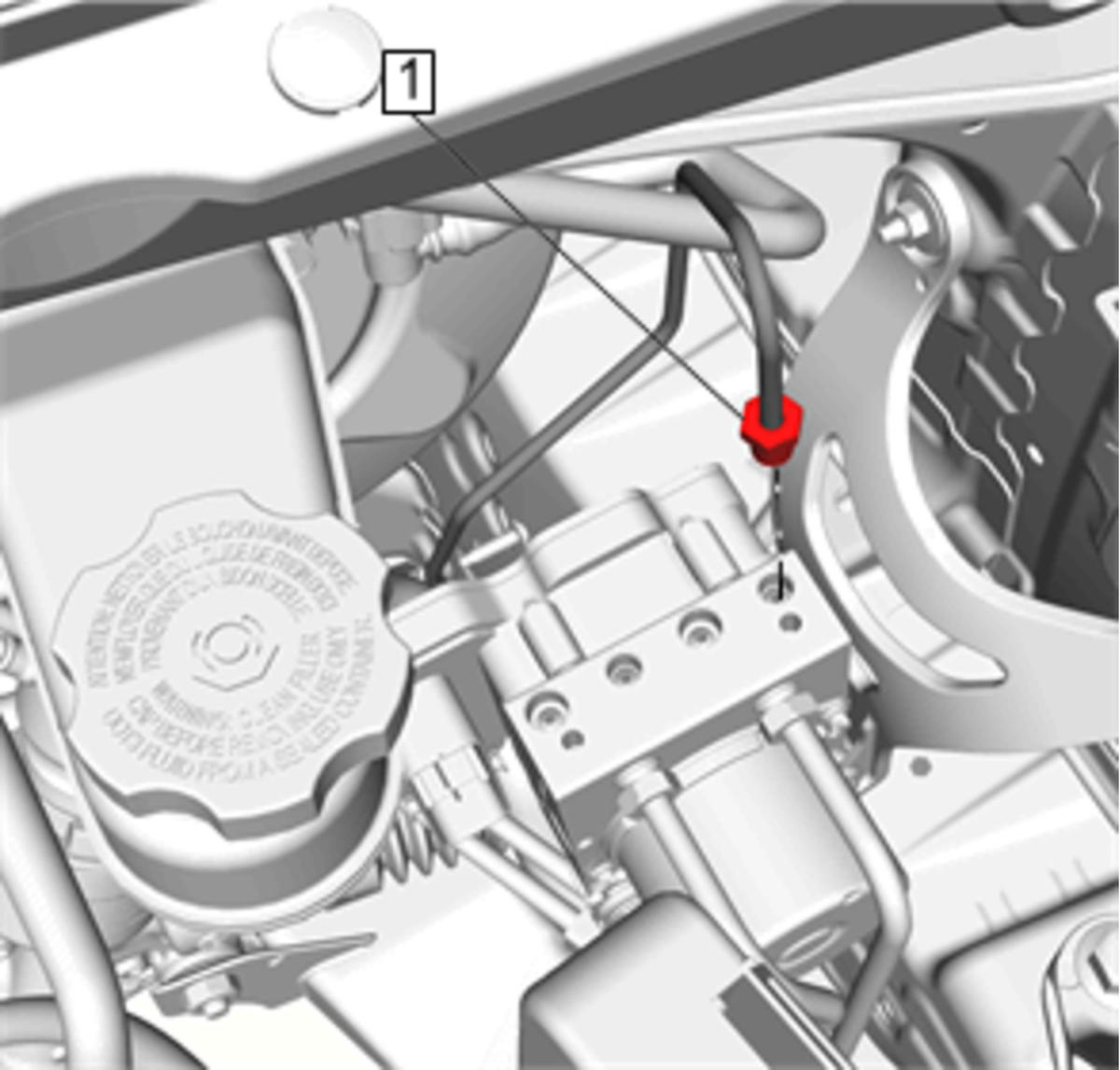

- Brake Pressure Modulator Valve Secondary Pipe Fitting (1) - Install and tighten 32 N.m (24 lb ft)
Remove the caps or plugs from the brake pipe fitting and the brake pressure modulator valve.

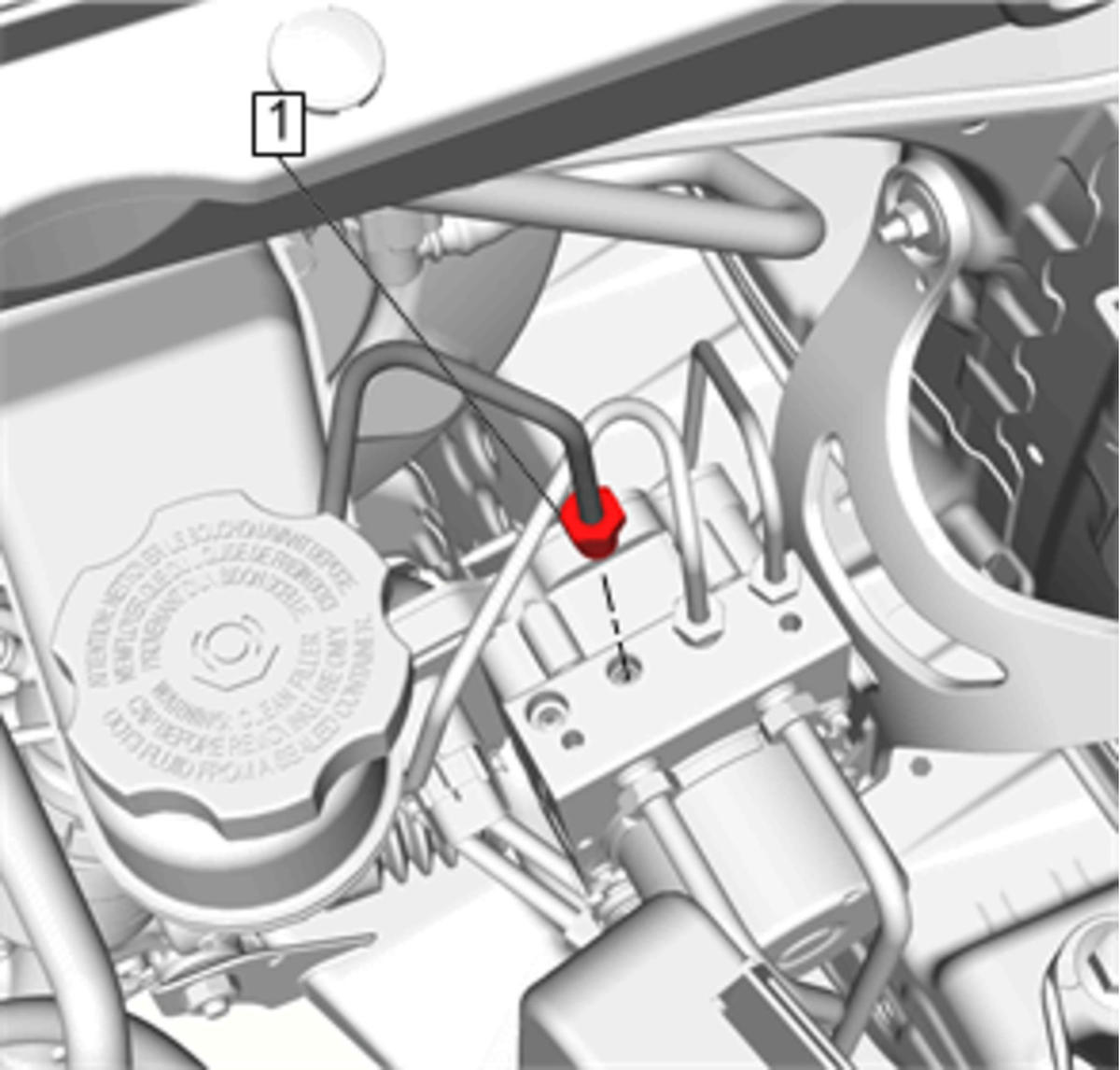

- Brake Pipe Fitting-Front-Left Side (1) - Install and tighten 18 N.m (13 lb ft)
Remove the caps or plugs from the brake pipe fitting and the brake pressure modulator valve.

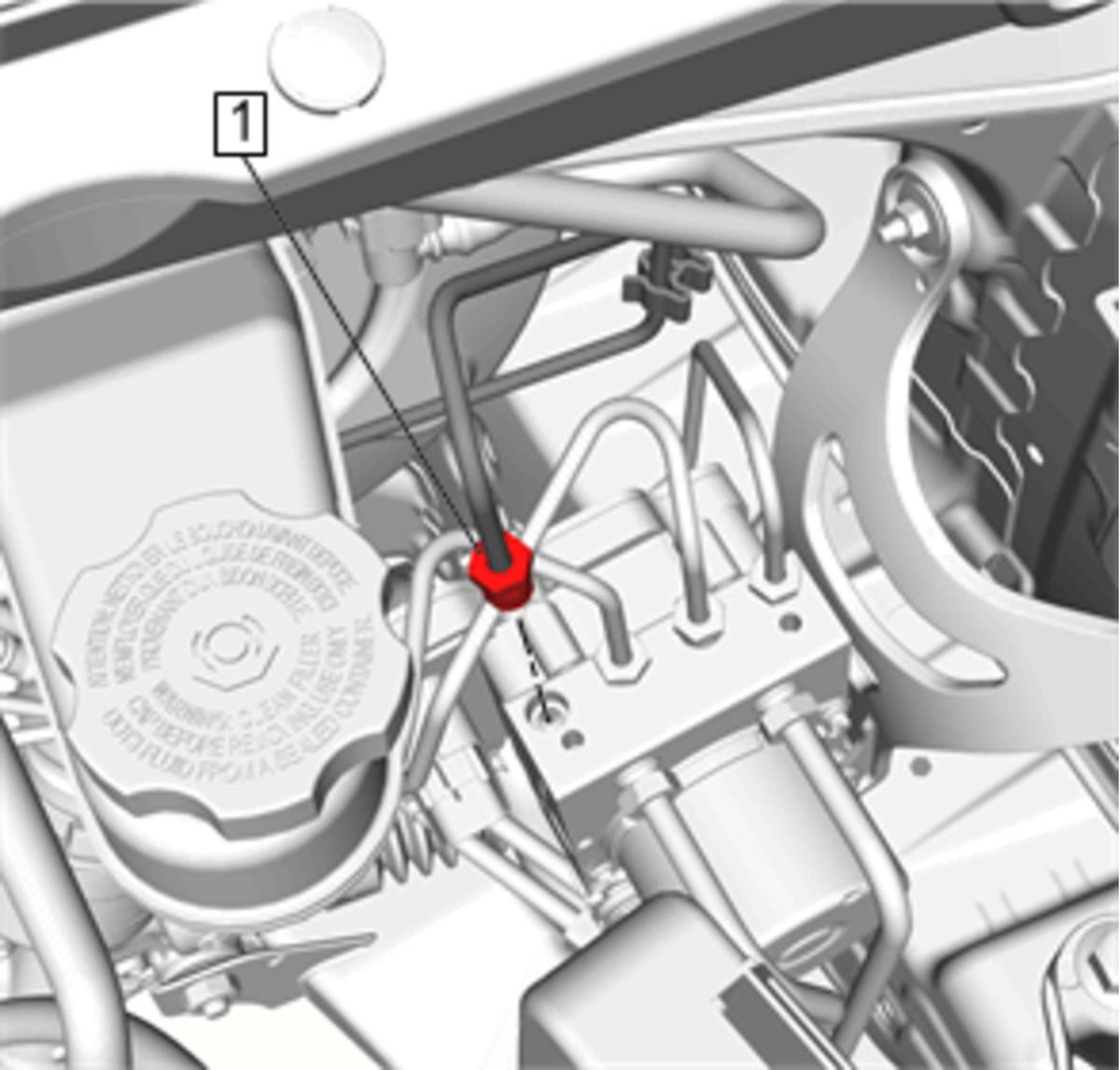

- Brake Pipe Fitting-Rear-Right Side (1) - Install and tighten 18 N.m (13 lb ft)
Remove the caps or plugs from the brake pipe fitting and the brake pressure modulator valve.

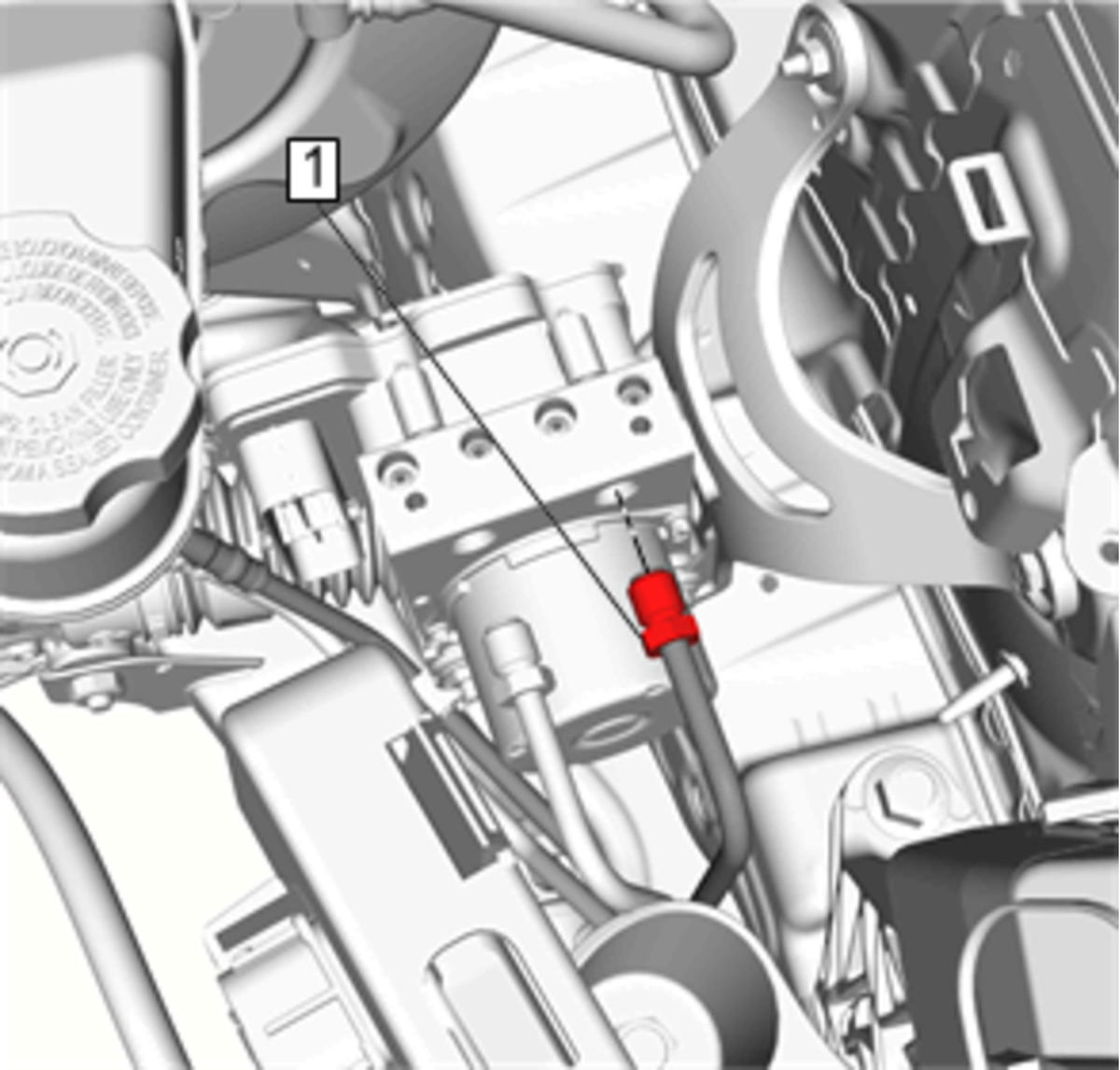

- Brake Pipe Fitting-Rear-Left Side (1) - Install and tighten 18 N.m (13 lb ft)
Remove the caps or plugs from the brake pipe fitting and the brake pressure modulator valve.

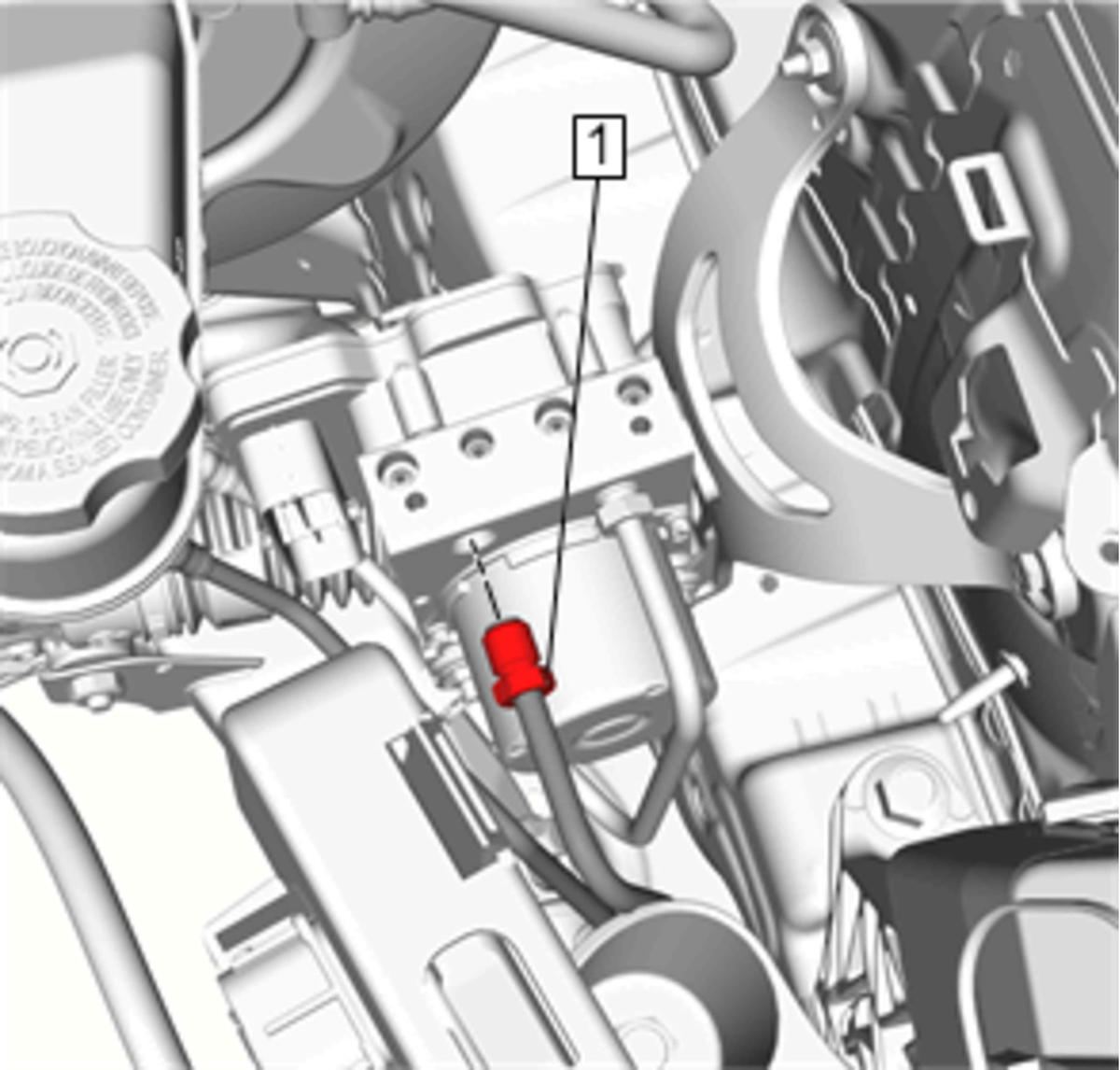

- Brake Pipe Fitting-Front-Right Side (1) - Install and tighten 18 N.m (13 lb ft)

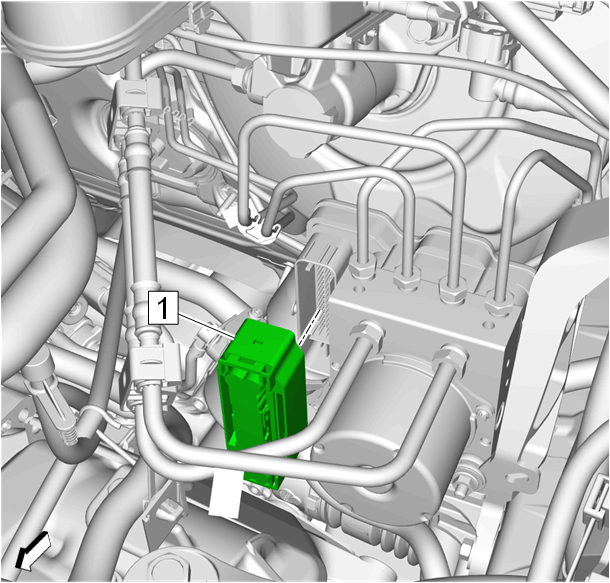

Electrical Connector (1) @ Electronic Brake Control Module - Disconnect
- Radiator Surge Tank Replacement - Install
- Engine Control Module - Reposition - Engine Control Module Replacement
- Connect the battery negative cable. Battery Negative Cable Disconnection and Connection (2.0L LTG)
- Bleed the brake system. Hydraulic Brake System Bleeding (Pressure) , or Hydraulic Brake System Bleeding (Manual)
- Run all necessary programming and setup procedures. Control Module References
- Center the steering angle sensor. Steering Wheel Angle Sensor Centering
CAUTION:
