Removal Procedure
- Remove the front tire and wheel assembly. Tire and Wheel Removal and Installation

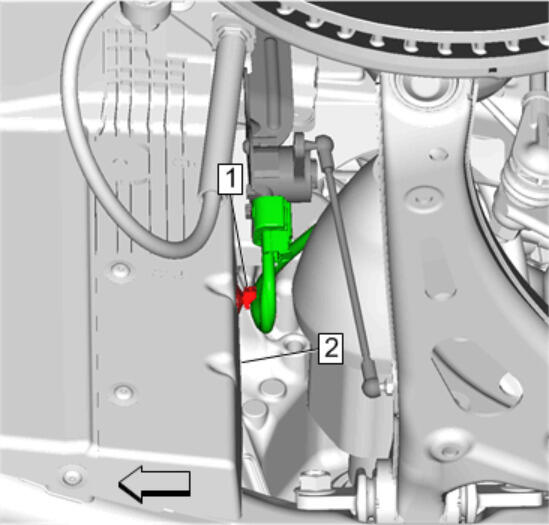

Separate the front leveling system position sensor harness clip (1) from the front compartment splash shield (2).

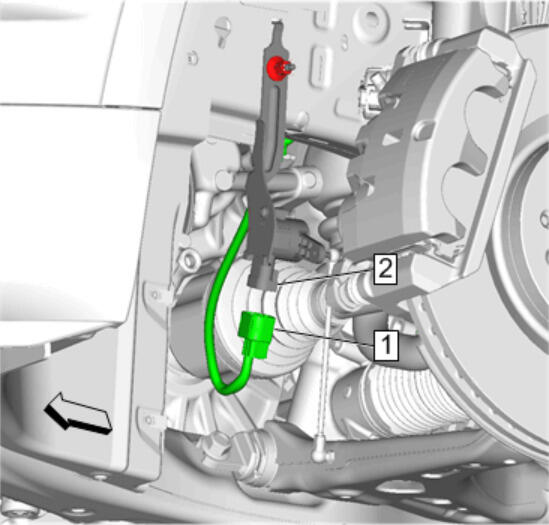

Disconnect the electrical connector (1) from the front leveling system position sensor (2).

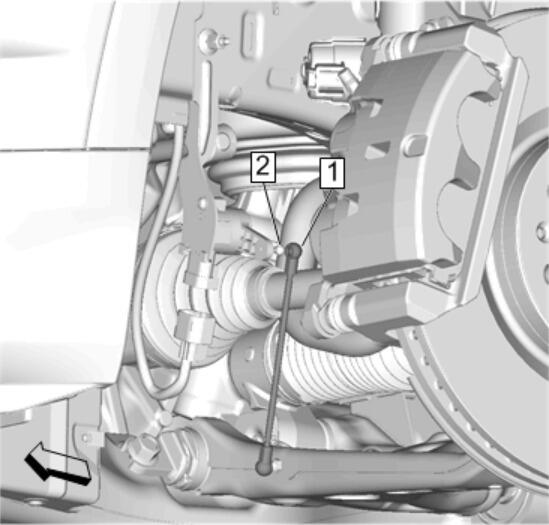

Disconnect the link rod (1) from the leveling system position sensor (2).

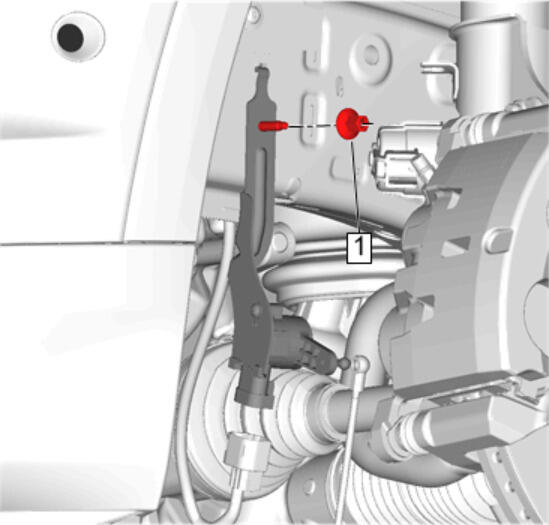

Remove the leveling system position sensor bracket nut (1).

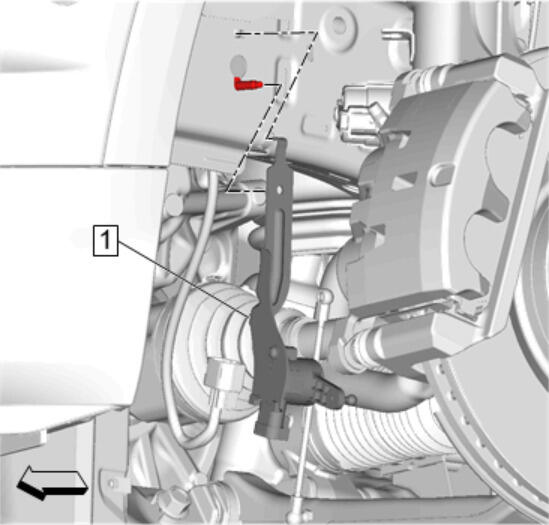

Remove the front leveling system position sensor and bracket (1) from the vehicle.
