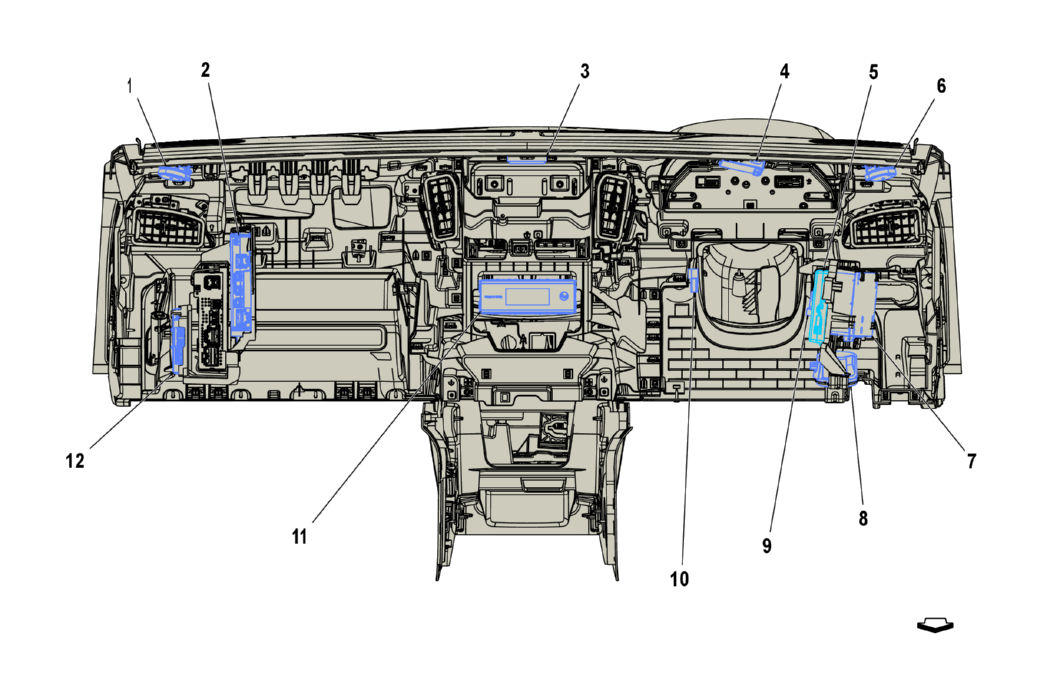

Behind the Instrument Panel Components (IOR)

Courtesy of GENERAL MOTORS COMPANY

Components
1. P19W Speaker - Right Instrument Panel P19W Speaker - Right Instrument Panel (UQA) , or P19W Speaker - Right Instrument Panel (UQF) .
2. K74 Human Machine Interface Control Module
3. P19B Speaker - Center Instrument Panel P19B Speaker - Center Instrument Panel
4. P16 Instrument Cluster P16 Instrument Cluster X1 (IOS+(UDD/UHS)) , or P16 Instrument Cluster X2 .
5. C3 Telematics Communication Interface Control Module Battery
6. P19J Speaker - Left Instrument Panel P19J Speaker - Left Instrument Panel (UQA) , or P19J Speaker - Left Instrument Panel (UQF) .
7. K73 Telematics Communication Interface Control Module K73 Telematics Communication Interface Control Module X1 , or K73 Telematics Communication Interface Control Module X5 , or K73 Telematics Communication Interface Control Module X7 .
8. K56 Serial Data Gateway Module K56 Serial Data Gateway Module X1 , or K56 Serial Data Gateway Module X2 .
9. P43 Collision Alert Indicators P43 Collision Alert Indicators
10. A11 Radio (IOS or IOT) A11 Radio X1 , or A11 Radio X2 ((IOS/IOU) + UQF) , or A11 Radio X3 (IOS/IOU) , or A11 Radio X4 (IOS/IOU) , or A11 Radio X5 , or A11 Radio X6 , or A11 Radio X8 , or A11 Radio X9 .
11. K188 Human Machine Interface Control Module Bypass Module
