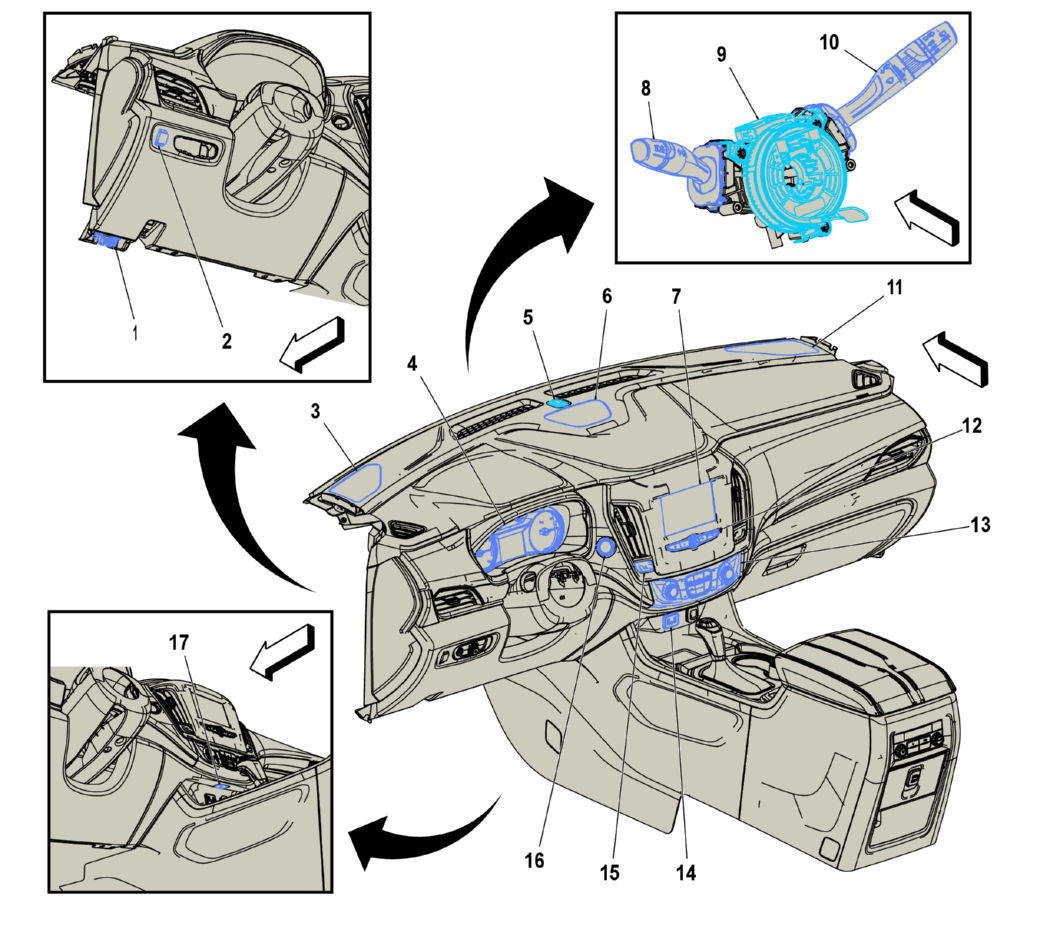

Instrument Panel Components

Courtesy of GENERAL MOTORS COMPANY

Components
1. X84 Data Link Connector X84 Data Link Connector
2. B80 Park Brake Switch B80 Park Brake Switch
3. P19J Speaker - Left Instrument Panel P19J Speaker - Left Instrument Panel (UQA) , or P19J Speaker - Left Instrument Panel (UQF) .
4. P16 Instrument Cluster P16 Instrument Cluster X1 (IOS+(UDD/UHS)) , or P16 Instrument Cluster X2 .
5. B10B Ambient Light/Sunload Sensor B10B Ambient Light/Sunload Sensor
6. P19B Speaker - Center Instrument Panel P19B Speaker - Center Instrument Panel
7. A22 Radio Controls (IOS or IOT)
8. S78 Turn Signal/Multifunction Switch S78 Turn Signal/Multi-Function Switch
9. X85 Steering Wheel Air Bag Coil X85 Steering Wheel Air Bag Coil X1 , or X85 Steering Wheel Air Bag Coil X2 .
10. S82 Windshield Wiper/Washer Switch S82 Windshield Wiper/Washer Switch
11. P19W Speaker - Right Instrument Panel P19W Speaker - Right Instrument Panel (UQA) , or P19W Speaker - Right Instrument Panel (UQF) .
12. A11 Radio (IOS or IOT) A11 Radio X1 , or A11 Radio X2 ((IOS/IOU) + UQF) , or A11 Radio X3 (IOS/IOU) , or A11 Radio X4 (IOS/IOU) , or A11 Radio X5 , or A11 Radio X6 , or A11 Radio X8 , or A11 Radio X9 .
13. A26 HVAC Controls A26 HVAC Controls
14. X83 Auxiliary Audio Input X83 Auxiliary Audio Input X1 , or X83 Auxiliary Audio Input X2 .
15. S26 Hazard Warning Switch S26 Hazard Warning Switch
16. S38 Ignition Mode Switch S38 Ignition Mode Switch
17. E1GA Accent Lamp - Left Middle Instrument Panel E1GA Accent Lamp - Left Middle Instrument Panel
