Headliner Components

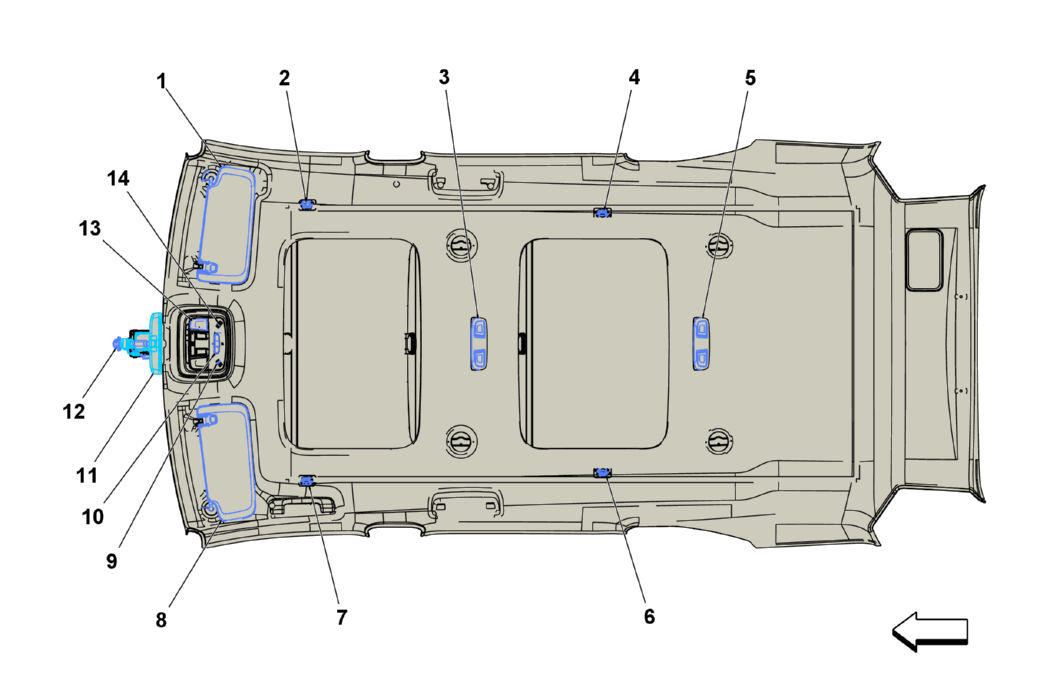

GM5778446Courtesy of GENERAL MOTORS COMPANY
Headliner Components

Components
1. A3L Sunshade - Left
2. B77LF Radio Volume Compensator Interior Noise Microphone - Left Front B77LF Radio Volume Compensator Interior Noise Microphone - Left Front
3. E37M Dome/Reading Lamps - Middle E37M Dome/Reading Lamps - Middle
4. B77LR Radio Volume Compensator Interior Noise Microphone - Left Rear B77LR Radio Volume Compensator Interior Noise Microphone - Left Rear
5. E37R Dome/Reading Lamps - Rear E37R Dome/Reading Lamps - Rear
6. B77RR Radio Volume Compensator Interior Noise Microphone - Right Rear B77RR Radio Volume Compensator Interior Noise Microphone - Right Rear
7. B77RF Radio Volume Compensator Interior Noise Microphone - Right Front B77RF Radio Volume Compensator Interior Noise Microphone - Right Front
8. A3R Sunshade - Right
9. B24RF Mobile Telephone Microphone - Right Front B24RF Mobile Telephone Microphone - Right Front
10. S25 Garage Door Opener (UG1) S25 Garage Door Opener
11. A10 Inside Rearview Mirror
A10 Inside Rearview Mirror X1 , or
A10 Inside Rearview Mirror X2
12. B160 Windshield Temperature and Inside Moisture Sensor B160 Windshield Temperature and Inside Moisture Sensor
13. A98 Front Overhead Console Assembly A98 Front Overhead Console Assembly
14. B24LF Mobile Telephone Microphone - Left Front B24LF Mobile Telephone Microphone - Left Front
