Intake Air Splash Shield Replacement

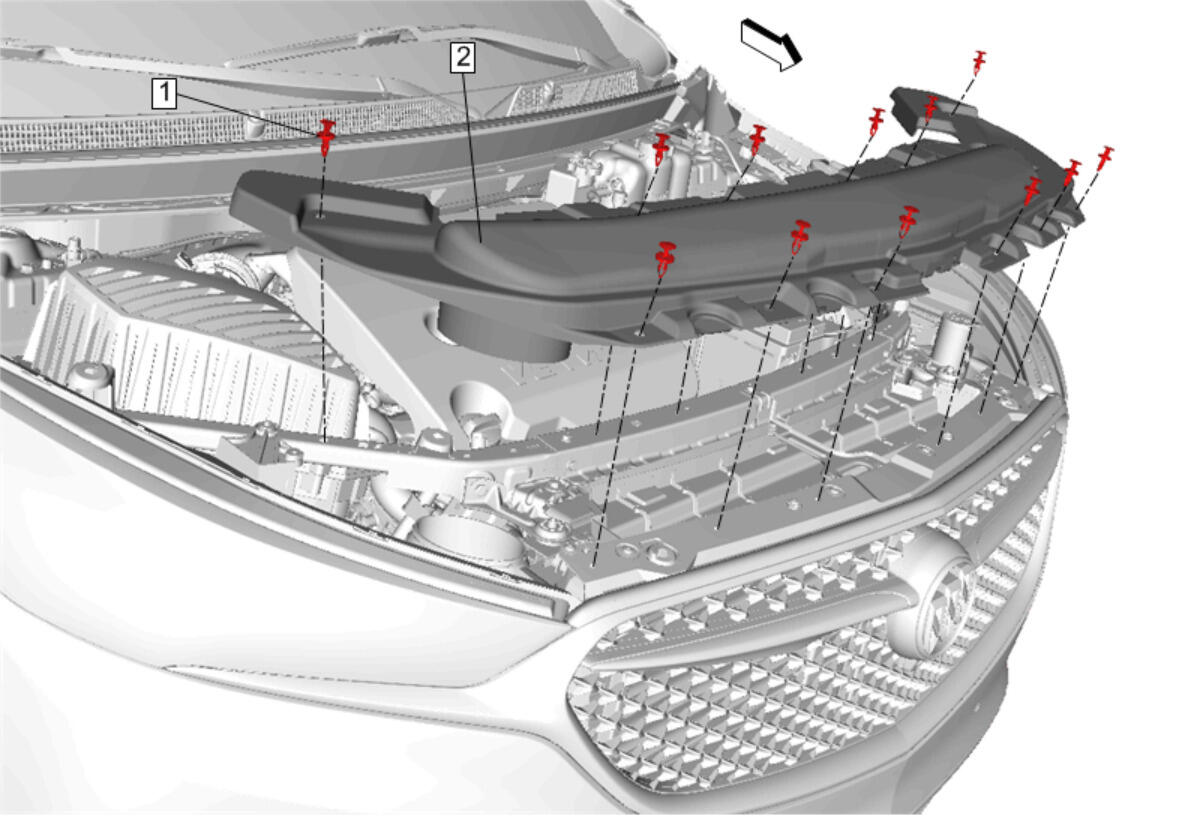

GM4823463Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Intake Air Splash Shield Retainer [ 12x ]
CAUTION:

Refer to Fastener Caution .
2 Intake Air Splash Shield
