Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

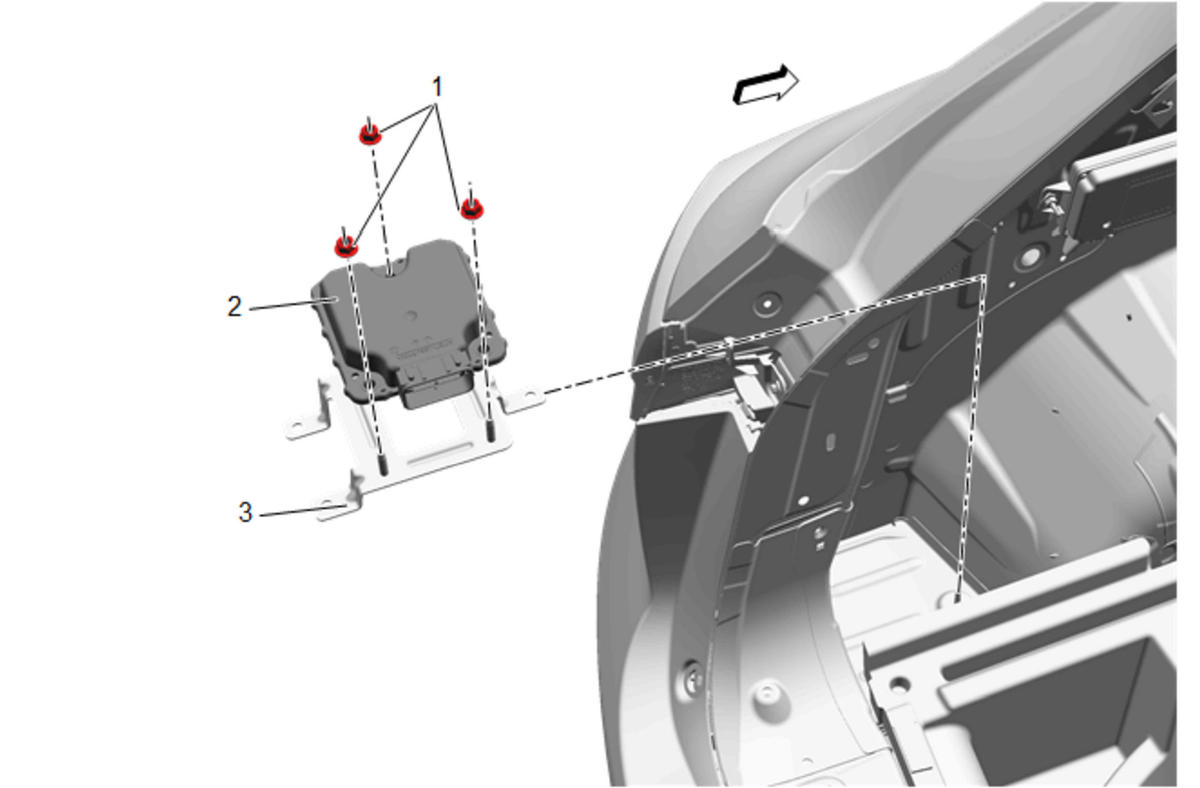

Electronic Suspension Control Module (2) @ Electronic Suspension Control Module Bracket (3) - Install
Electronic Suspension Control Module Bracket Nut (1) - Install and tighten [3x] 9 N.m (80 lb in)
Connect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

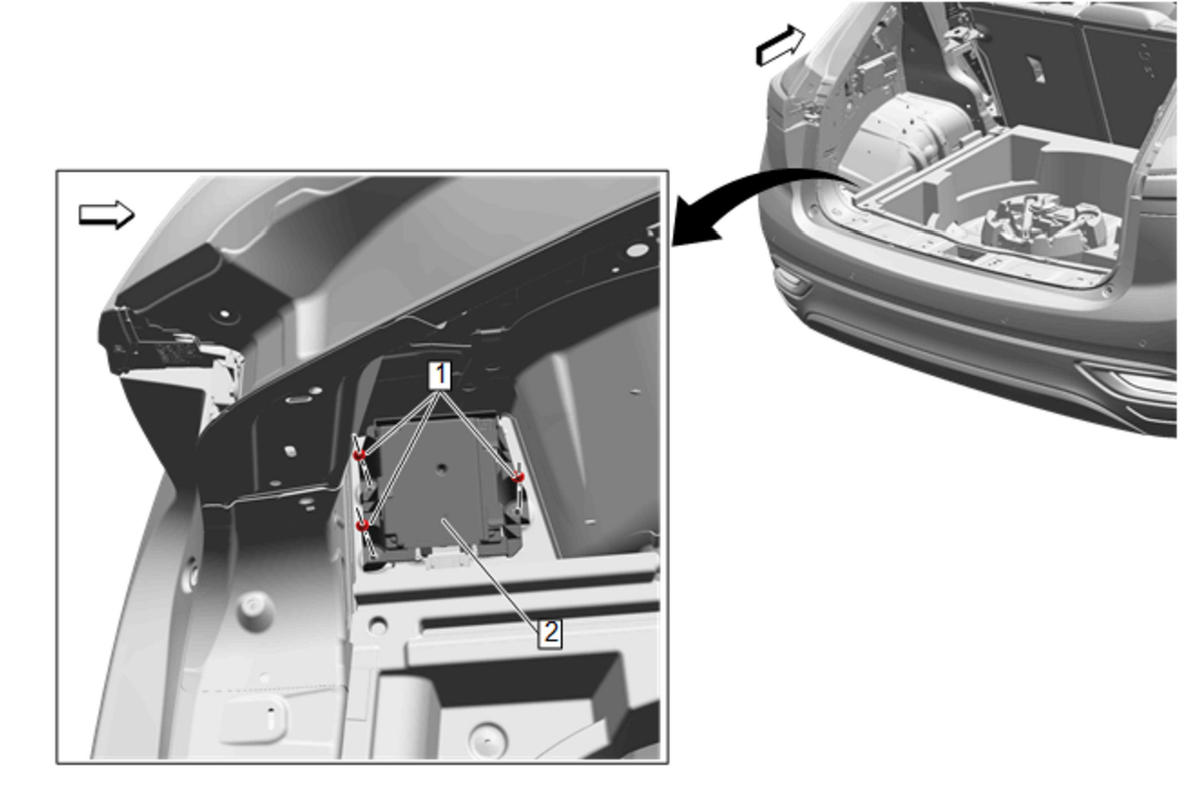

Install the active safety control module and bracket assembly (2) to the vehicle.
Active Safety Control Module Bracket Nut (1) - Install and tighten [3x] 9 N.m (80 lb in)
Connect the electrical connectors.
Courtesy of GENERAL MOTORS COMPANY

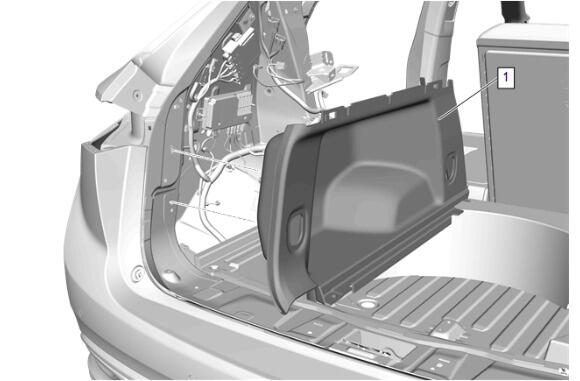

Quarter Lower Rear Trim Panel (1) - Install - Quarter Lower Rear Trim Panel Replacement
