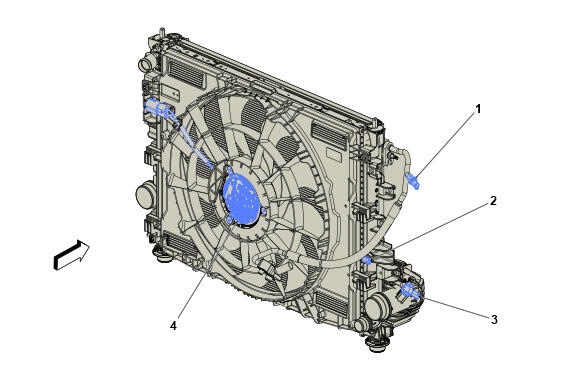

Radiator Area Components

GM5639092Courtesy of GENERAL MOTORS COMPANY
Radiator Area Components

Component Name Callout
B1 Air Conditioning Refrigerant Pressure Sensor B1 Air Conditioning Refrigerant Pressure Sensor 1
B203 Radiator Coolant Temperature Sensor B203 Radiator Coolant Temperature Sensor 2
B111 Turbocharger/Supercharger Boost Pressure Sensor B111 Turbocharger/Supercharger Boost Pressure Sensor 3
G10 Engine Cooling Fan Motor G10 Engine Cooling Fan Motor 4
