Engine Components - Left Rear

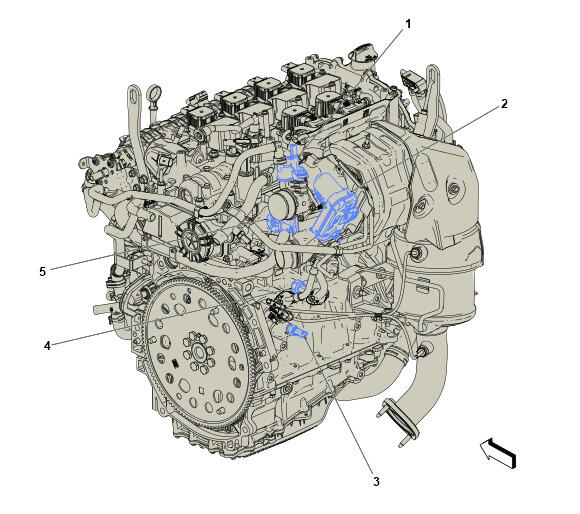

GM5639095Courtesy of GENERAL MOTORS COMPANY
Engine Components - Left Rear

Component Name Callout
Q12 Evaporative Emission Canister Purge Solenoid Valve Q12 Evaporative Emission Canister Purge Solenoid Valve 1
M128 Turbocharger Wastegate Actuator M128 Turbocharger Wastegate Actuator 2
B36 Engine Oil Temperature Sensor B36 Engine Oil Temperature Sensor 3
B37B Engine Oil Pressure Sensor B37B Engine Oil Pressure Sensor 4
Q40 Turbocharger Bypass Valve Solenoid Q40 Turbocharger Bypass Valve Solenoid 5
