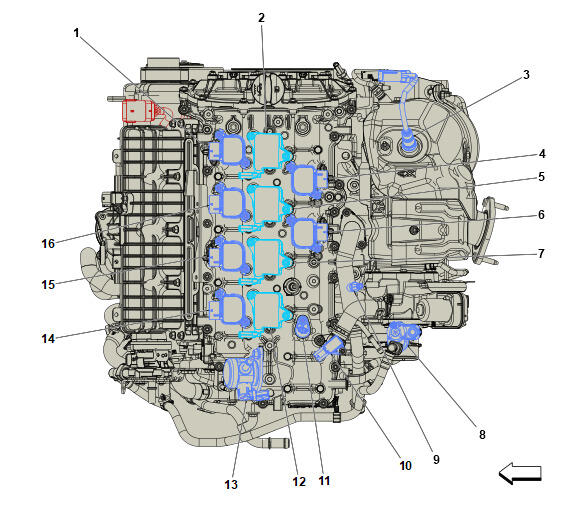

Engine Components - Top
Engine Components - Top
| Component Name | Callout |
|---|---|
| M129A Intake Camshaft Profile Actuator 1 M129A Intake Camshaft Profile Actuator 1 | 1 |
| T8A Ignition Coil 1 T8A Ignition Coil 1 | 2 |
| B52A Heated Oxygen Sensor 1 B52A Heated Oxygen Sensor 1 | 3 |
| M130B Exhaust Camshaft Profile Actuator 2 M130B Exhaust Camshaft Profile Actuator 2 | 4 |
| T8B Ignition Coil 2 T8B Ignition Coil 2 | 5 |
| M130C Exhaust Camshaft Profile Actuator 3 M130C Exhaust Camshaft Profile Actuator 3 | 6 |
| T8C Ignition Coil 3 T8C Ignition Coil 3 | 7 |
| Q12 Evaporative Emission Canister Purge Solenoid Valve Q12 Evaporative Emission Canister Purge Solenoid Valve | 8 |
| B34E Engine Coolant Temperature Sensor 5 B34E Engine Coolant Temperature Sensor 5 | 9 |
| B321 Crankcase Pressure Sensor B321 Crankcase Pressure Sensor | 10 |
| B23E Camshaft Position Sensor - Exhaust B23E Camshaft Position Sensor - Exhaust | 11 |
| T8D Ignition Coil 4 T8D Ignition Coil 4 | 12 |
| G18 Fuel Pump - High Pressure G18 Fuel Pump - High Pressure | 13 |
| M129D Intake Camshaft Profile Actuator 4 M129D Intake Camshaft Profile Actuator 4 | 14 |
| M129C Intake Camshaft Profile Actuator 3 M129C Intake Camshaft Profile Actuator 3 | 15 |
| M129B Intake Camshaft Profile Actuator 2 M129B Intake Camshaft Profile Actuator 2 | 16 |
