Installation Procedure

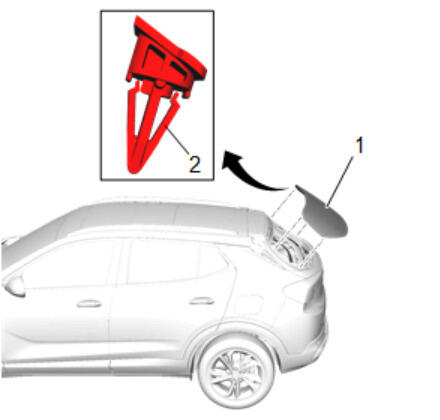

  1. GM5262877Courtesy of GENERAL MOTORS COMPANY

    Rear Window (1) - Install - Adhesive Installation of Rear Windows

  2. Connect the rear window grid electrical connectors.

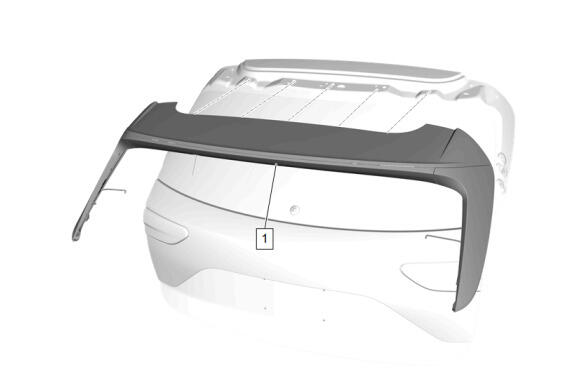

  3. GM5591519Courtesy of GENERAL MOTORS COMPANY

    Rear End Spoiler (1) - Install - Rear End Spoiler Replacement

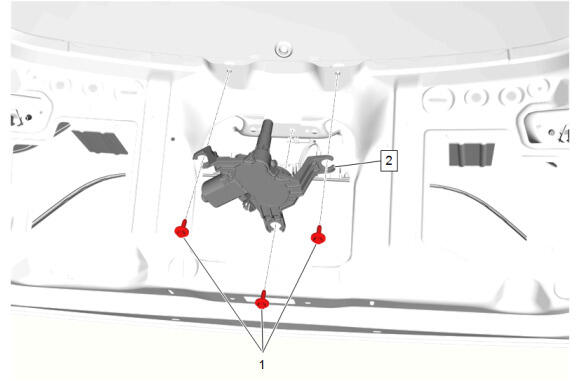

  4. GM5591659Courtesy of GENERAL MOTORS COMPANY

    Rear Window Wiper Motor (2) - Install - Rear Window Wiper Motor Replacement

  5. Battery Negative Cable - Connect - Battery Negative Cable Disconnection and Connection
  6. Liftgate - Close
  7. Double layer of masking tape around the perimeter of the painted surfaces and the interior trim - Remove
