Engine Control Module Bracket Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Engine Control Module Replacement Battery Replacement Remove wiring harness retainers from engine control module bracket.

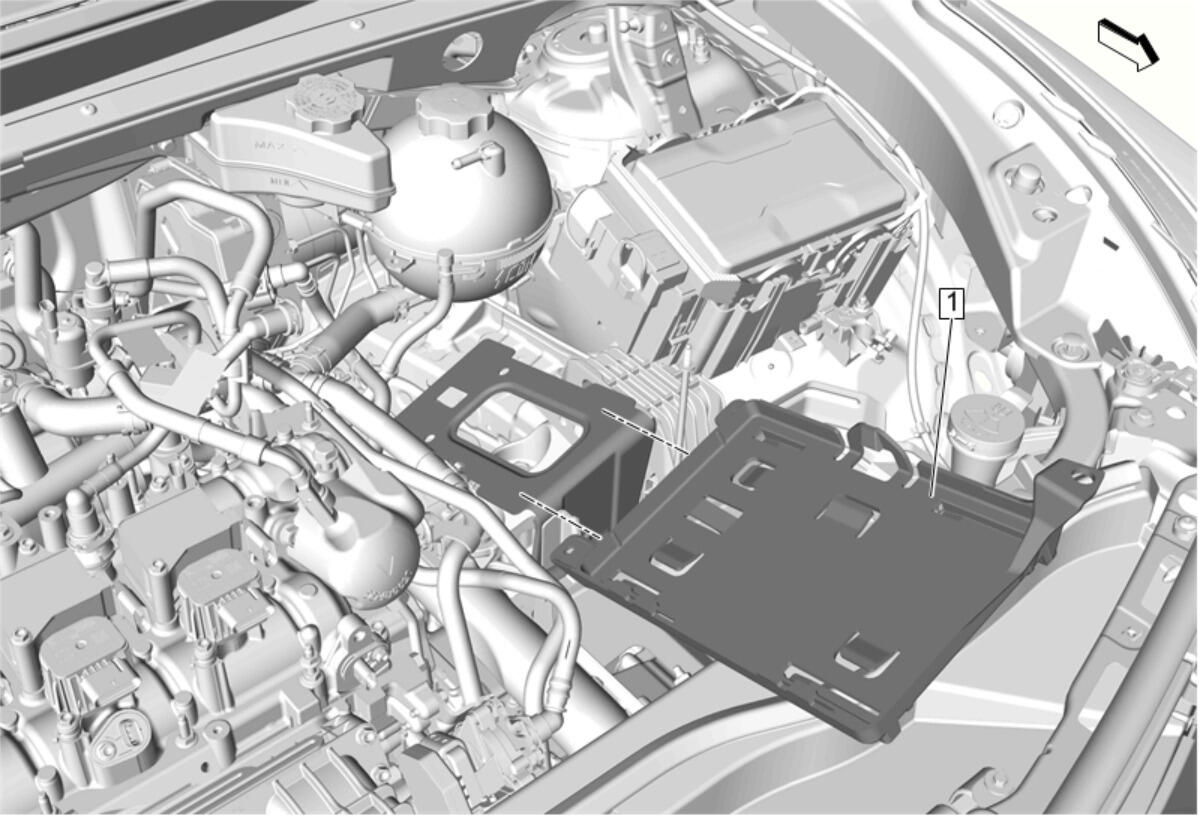

1	Engine Control Module Bracket Procedure Release retaining tab and slide bracket forward to remove.

Callout

Component Name

Preliminary Procedures

Engine Control Module Bracket
Procedure
Release retaining tab and slide bracket forward to remove.
