Installation Procedure

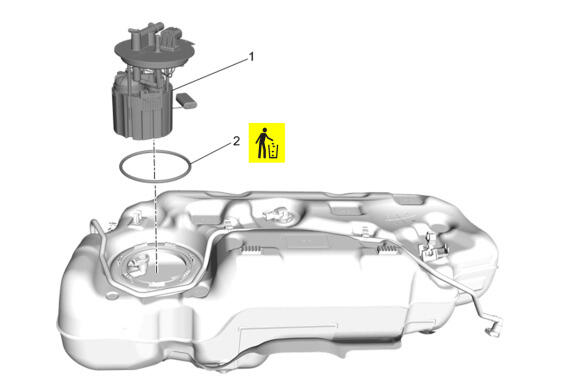

  1. GM5049524Courtesy of GENERAL MOTORS COMPANY

    O-Ring (2) - Install NEW

  2. Fuel Tank Fuel Pump Module (1) - Install

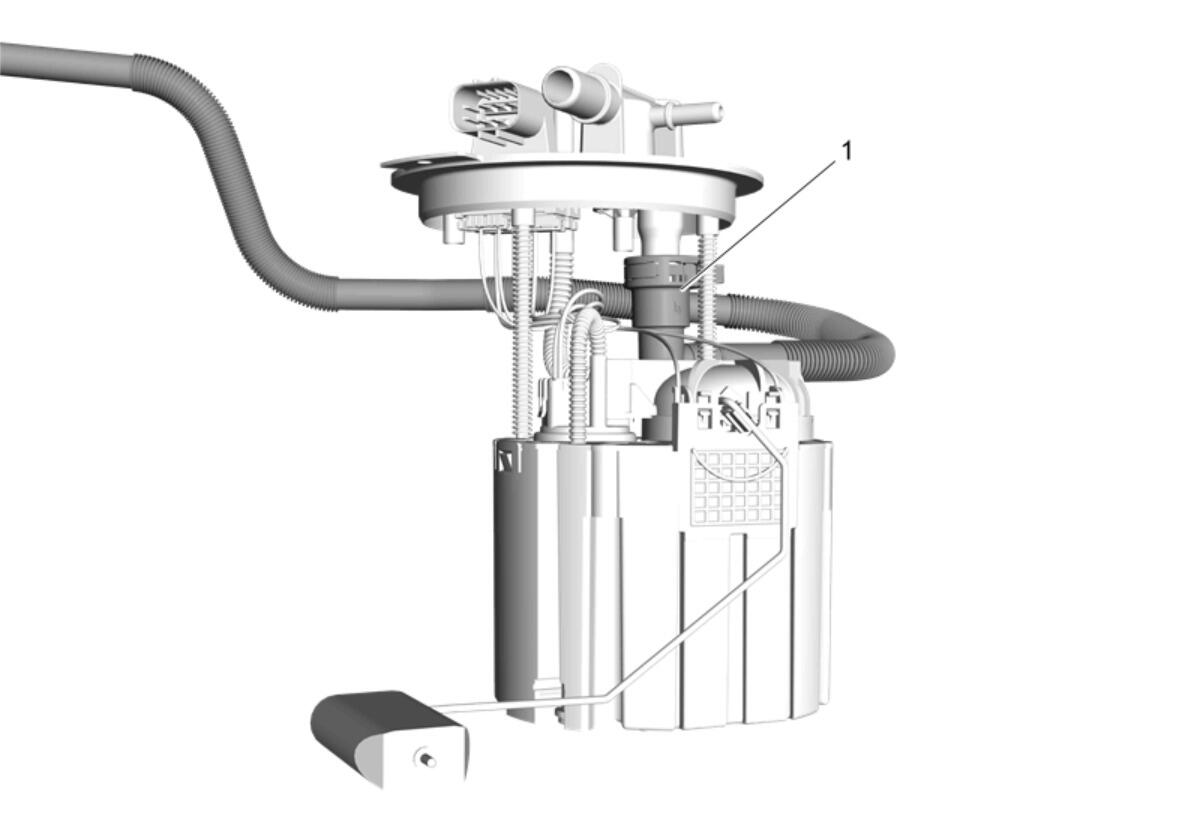

  3. GM5049528Courtesy of GENERAL MOTORS COMPANY

    Fuel Tank Vent Pipe (1) - Connect - Plastic Collar Quick Connect Fitting Service

  4. GM5049678Courtesy of GENERAL MOTORS COMPANY

    Fuel Sender Retainer (1) - Install - CH-45722  Fuel Sender Lock Ring Wrench (2)

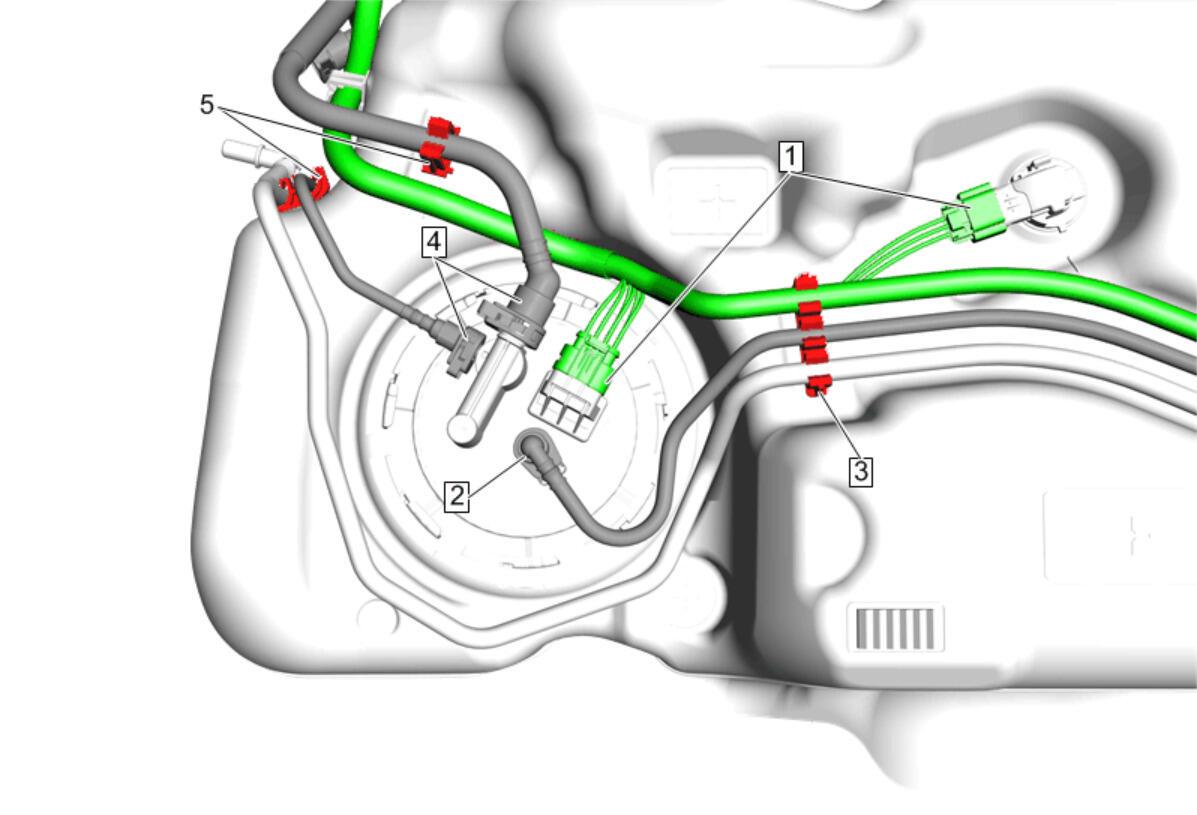

  5. GM5049511Courtesy of GENERAL MOTORS COMPANY

    Fuel Tank Vent Pipe (4) @ Retainer (5) - Install [2x]

  6. Fuel Tank Vent Pipe (4) - Connect [2x] - Plastic Collar Quick Connect Fitting Service
  7. Fuel Feed Pipe (2) @ Retainer (3) - Install
  8. Fuel Feed Pipe (2) - Connect - Plastic Collar Quick Connect Fitting Service
  9. Electrical Connector (1) - Connect [2x]
  10. Fuel Tank - Install - Fuel Tank Replacement (FWD)
