Fuel Tank Pressure Sensor Replacement (AWD)

Courtesy of GENERAL MOTORS COMPANY

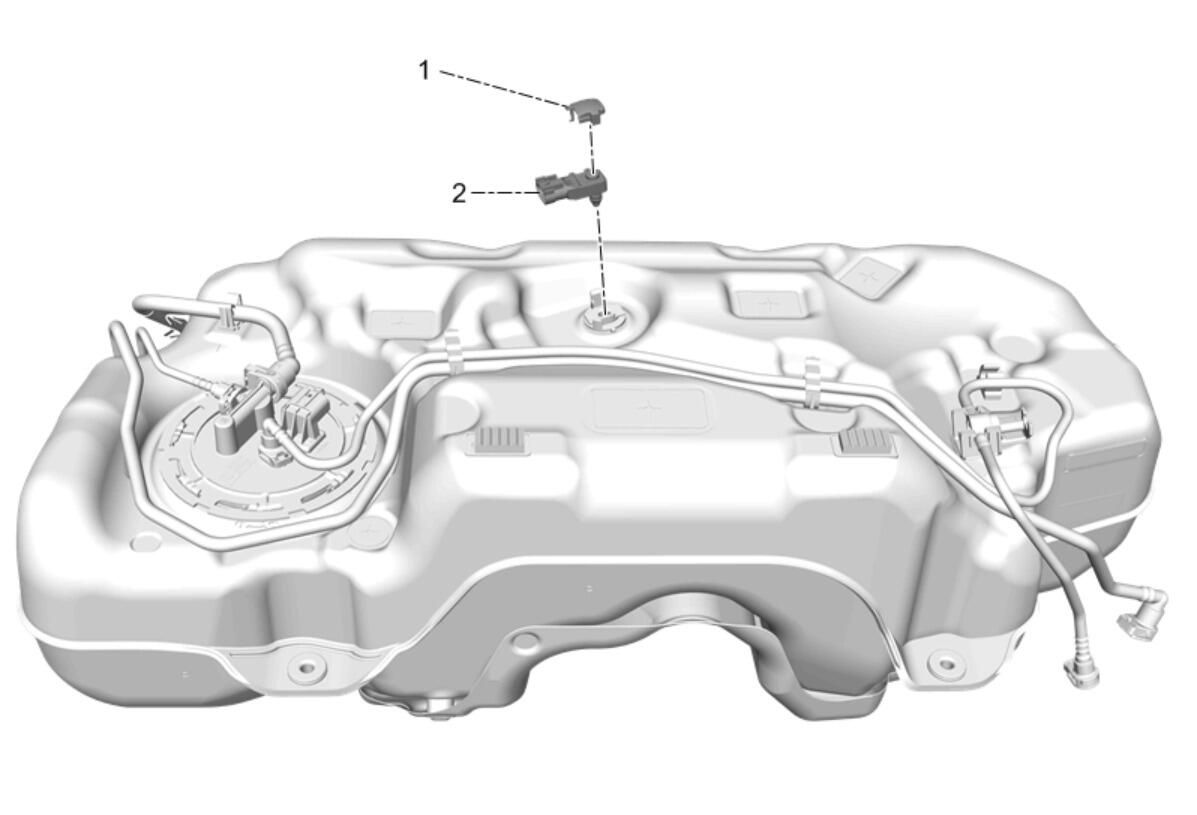

Callout	Component Name
WARNING: Refer to Diesel/Gasoline Vapors Warning . WARNING: Refer to Safety Glasses Warning . Preliminary Procedure Fuel Tank Replacement (AWD)
1	Fuel Tank Pressure Sensor Cover
2	Fuel Tank Pressure Sensor Procedure Disconnect the electrical connector. Clean and inspect O-ring and apply engine oil. Adhesives, Fluids, Lubricants, and Sealers

Callout

Component Name

WARNING:

WARNING:

Fuel Tank Pressure Sensor Cover

Fuel Tank Pressure Sensor

Procedure

Disconnect the electrical connector.
Clean and inspect O-ring and apply engine oil. Adhesives, Fluids, Lubricants, and Sealers
