Front Suspension 4 Corner Leveling System Position Sensor Replacement: Removal
- Raise and support the vehicle. Lifting and Jacking the Vehicle
- Remove the right front tire and wheel assembly. Tire and Wheel Removal and Installation

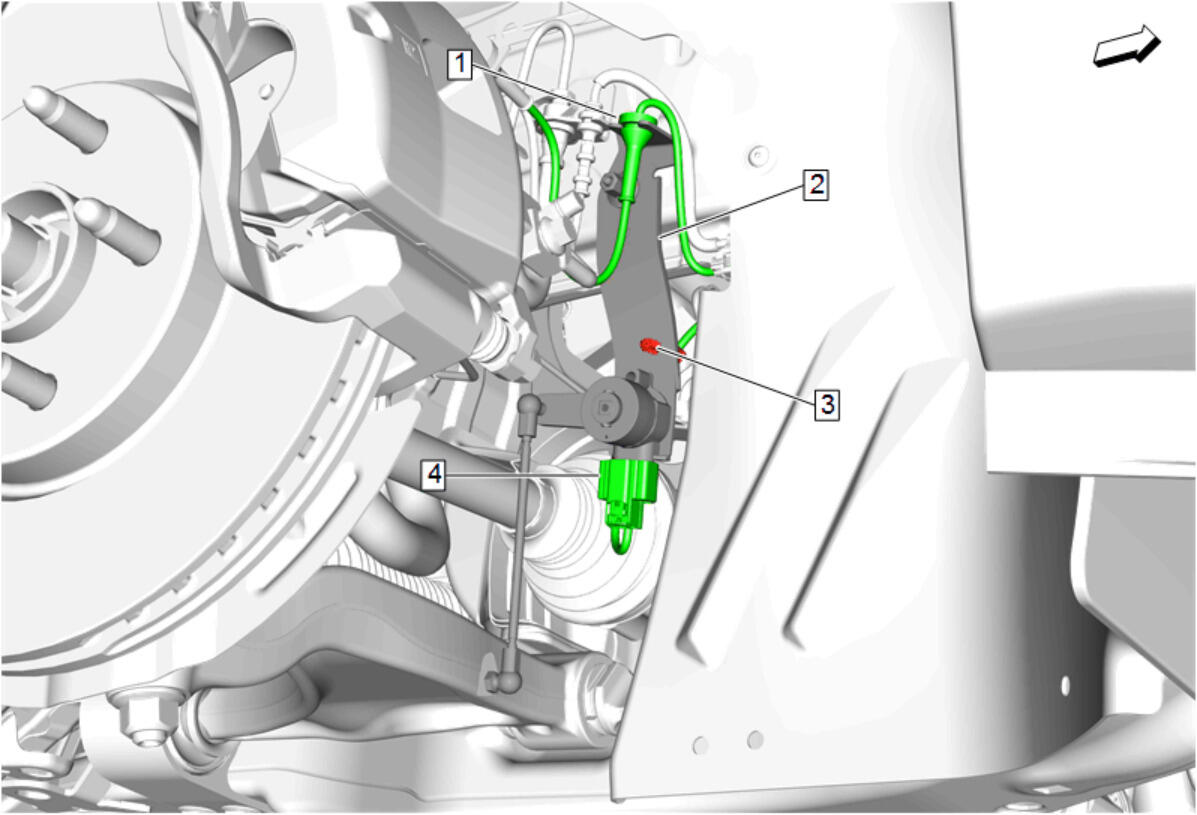

Electrical Connector (4) @ Front Suspension 4 Corner Leveling System Position Sensor (2) - Disconnect
- Unclip the wire harness grommet (1) and the wire harness retainer (3) from the front suspension 4 corner leveling system position sensor (2) and reposition the harnesses.

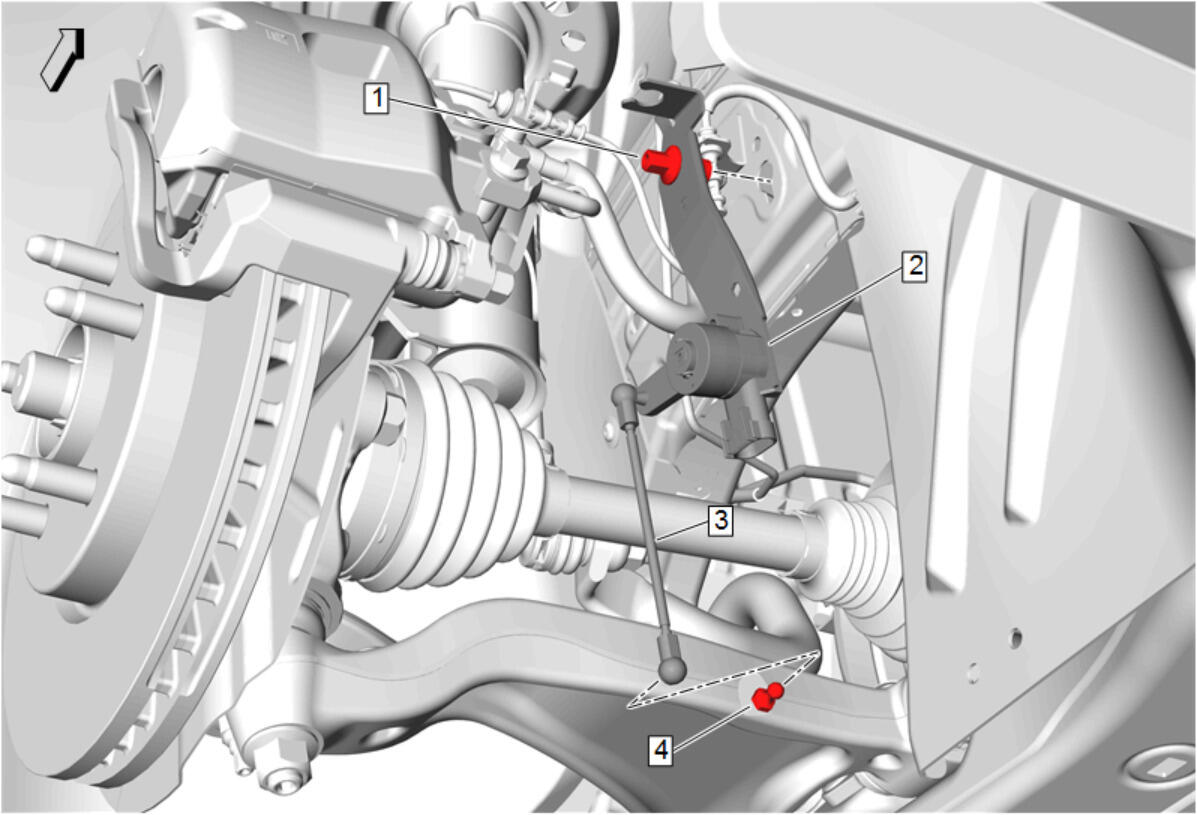

- Disconnect the front suspension 4 corner leveling system position sensor link (3) from the electronic suspension front position sensor link ball stud (4).
- Loosen the front suspension 4 corner leveling system position sensor nut (1).
- Remove the front suspension 4 corner leveling system position sensor (2) from the keyhole slot at the frame.
