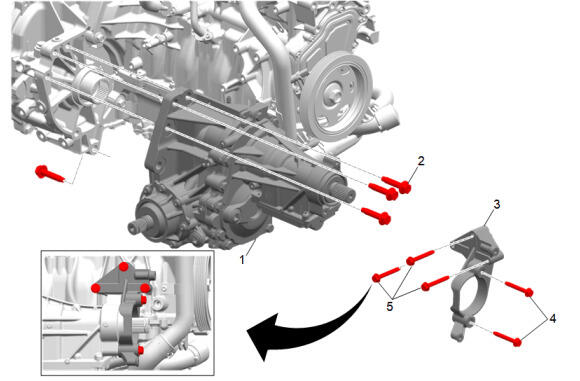

Power Transfer Unit Mounting
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1
Power Transfer Unit
2
Power Transfer Unit-to-Transmission Bolt
3
Power Transfer Unit Bracket
4
Power Transfer Unit Bracket-to-Extension Housing Bolt
5
Power Transfer Unit-to-Engine Bracket Bolt
