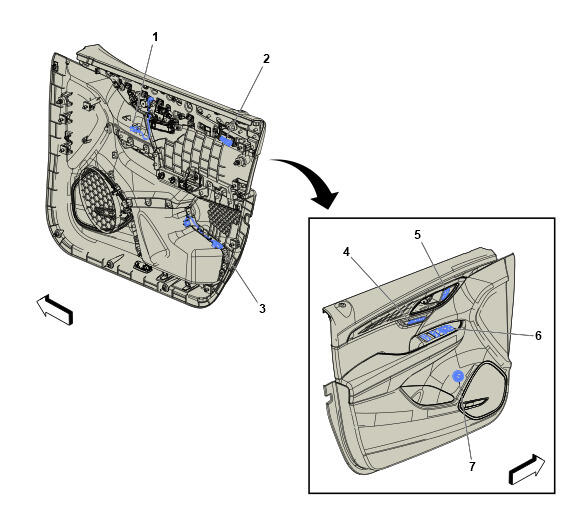

Driver Door Trim Components
Driver Door Trim Components
| Component Name | Callout |
|---|---|
| E63D Front Side Door Inside Handle Illumination Lamp - Left (C93) E63D Front Side Door Inside Handle Illumination Lamp - Left (C93) | 1 |
| E1D Front Side Door Light Conductor Lamp - Driver Trim Panel (C93) E1D Front Side Door Light Conductor Lamp - Driver Trim Panel (C93) | 2 |
| E55LF Front Side Door Map Pocket Illumination Lamp - Left (C93) E55LF Front Side Door Map Pocket Illumination Lamp - Left (C93) | 3 |
| S47D Front Seat Adjuster Memory Switch - Driver (A45) S47D Front Seat Adjuster Memory Switch - Driver (A45) | 4 |
| S13D Door Lock Switch - Driver S13D Door Lock Switch - Driver | 5 |
| S79D Front Side Door Window Control Switch - Driver S79D Front Side Door Window Control Switch - Driver X1 , or S79D Front Side Door Window Control Switch - Driver X2 (A45) | 6 |
| S45B Liftgate Release Switch (TC2) S45B Liftgate Release Switch (TC2) | 7 |
