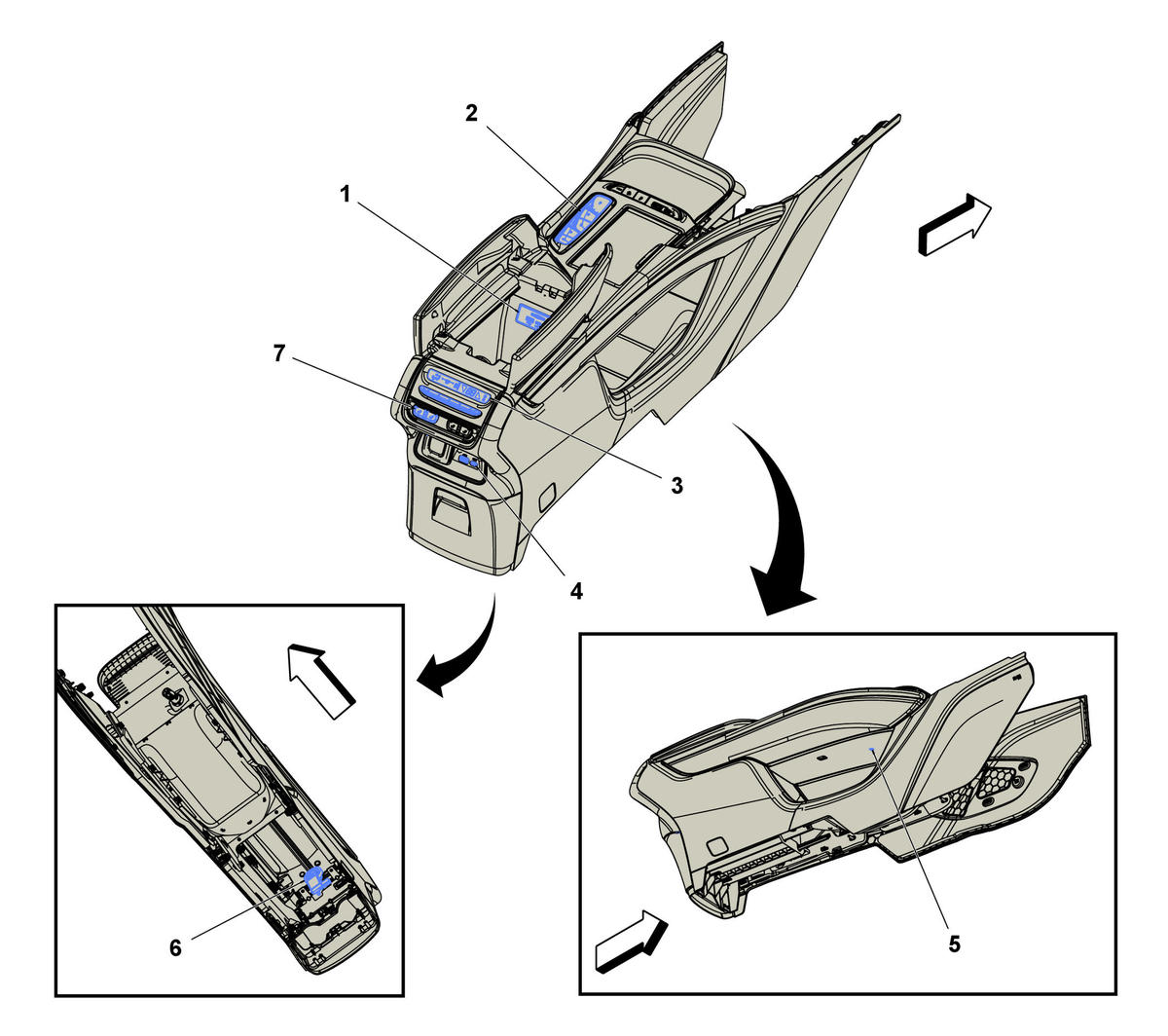

Center Console Components

GM5937236Courtesy of GENERAL MOTORS COMPANY
Center Console Components

Components
1. X83 Auxiliary Audio Input X83 Auxiliary Audio Input X1 (IOS/IOU) , or X83 Auxiliary Audio Input X2 (IOS/IOU)
2. A97 Transmission Range Selector Controls A97 Transmission Range Selector Controls
3. A34 HVAC Controls - Auxiliary A34 HVAC Controls - Auxiliary
4. X92C USB Receptacle - Center Console Rear X92C USB Receptacle - Center Console Rear
5. E28 Center Console Compartment Lamp E28 Center Console Compartment Lamp
6. K89 Immobilizer Control Module K89 Immobilizer Control Module
7. S32LR Seat Heating Switch - Left Rear
