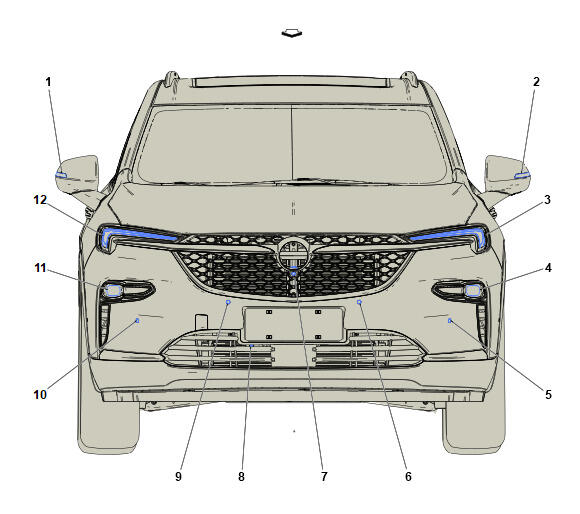

Front of Vehicle Components
Front of Vehicle Components
| Component Name | Callout |
|---|---|
| E4Z Turn Signal Repeater Lamp - Right | 1 |
| E4Y Turn Signal Repeater Lamp - Left | 2 |
| E69L Multifunction Lamp Assembly - Front Fascia Left (with or without 1sp) E69L Multifunction Lamp Assembly - Front Fascia Left (-1SP) , or E69L Multifunction Lamp Assembly - Front Fascia Left (1SP) | 3 |
| E13LA Headlamp Assembly - Left (with or without UWN) E13LA Headlamp Assembly - Left (-UWN) , or E13LA Headlamp Assembly - Left (UWN) | 4 |
| B306A Parking Assist Sensor - Front Left Outer B306A Parking Assist Sensor - Front Left Outer | 5 |
| B306B Parking Assist Sensor - Front Left Middle B306B Parking Assist Sensor - Front Left Middle | 6 |
| B174G Frontview Camera - Grille B174G Frontview Camera - Grille | 7 |
| B9 Ambient Air Temperature Sensor B9 Ambient Air Temperature Sensor | 8 |
| B306C Parking Assist Sensor - Front Right Middle B306C Parking Assist Sensor - Front Right Middle | 9 |
| B306D Parking Assist Sensor - Front Right Outer B306D Parking Assist Sensor - Front Right Outer | 10 |
| E13RA Headlamp Assembly - Right (with or without UWN) E13RA Headlamp Assembly - Right (-UWN) , or E13RA Headlamp Assembly - Right (UWN) | 11 |
| E69R Multifunction Lamp Assembly - Front Fascia Right (with or without 1sp)E69R Multifunction Lamp Assembly - Front Fascia Right (-1SP) , or E69R Multifunction Lamp Assembly - Front Fascia Right (1SP) | 12 |
