Installation Procedure

  1. Heated Steering Wheel Module (1) » Install

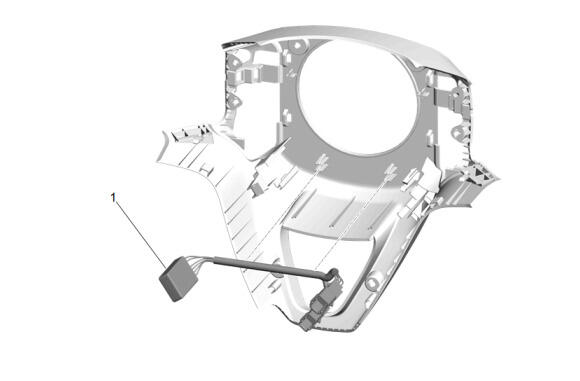

    GM5735654Courtesy of GENERAL MOTORS COMPANY
  2. Connect the heated steering wheel module electrical connectors.

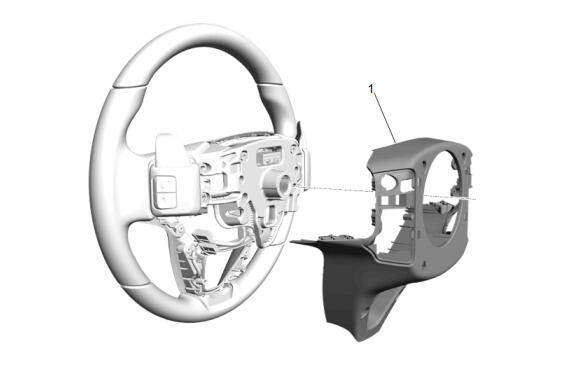

    GM5733396Courtesy of GENERAL MOTORS COMPANY
  3. Steering Wheel Shroud (1) » Install - Steering Wheel Shroud Replacement

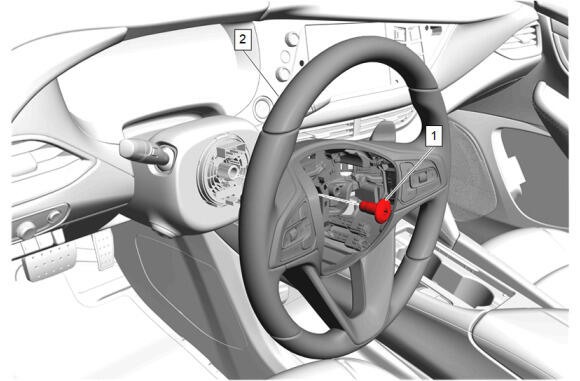

    GM5733134Courtesy of GENERAL MOTORS COMPANY
  4. Steering Wheel (2) » Install - Steering Wheel Replacement
  5. Steering Wheel Airbag » Install -Steering Wheel Airbag Replacement

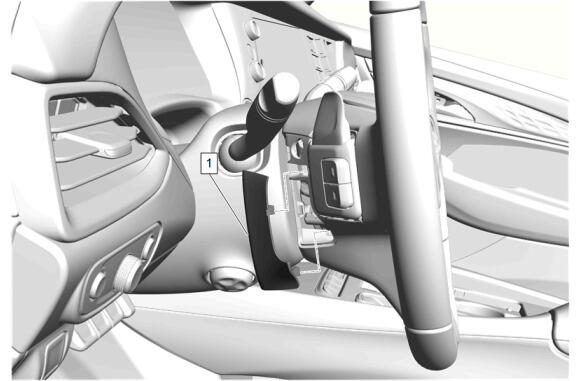

    GM5733123Courtesy of GENERAL MOTORS COMPANY
  6. Install the left and right steering wheel airbag access hole covers (1). Steering Wheel Airbag Access Hole Cover Replacement
