Front View Driver Information Camera Bracket Replacement

WARNING: This page is about a different car, the 2022 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

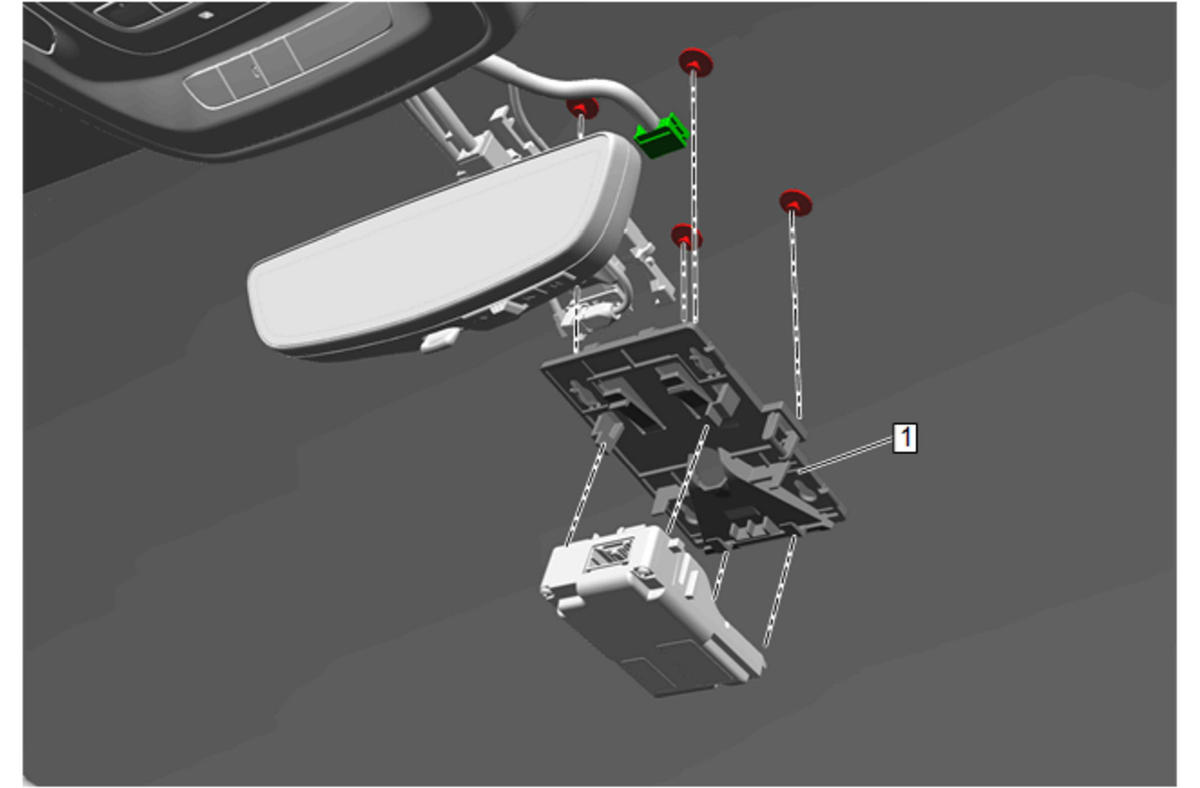

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure Windshield Multifunction Sensor Mount Bracket Cover Replacement (without UHX) , or Windshield Multifunction Sensor Mount Bracket Cover Replacement (with UHX)
1	Front View Driver Information Camera Bracket Procedure Release the retaining tabs and slide the bracket upward to disengage pins. Gently pull from windshield. Transfer components as necessary. Ensure the inside of the windshield is clean before reinstalling the bracket. NOTE: Do Not remove or service the sensor farm pins.

Callout

Component Name

Preliminary Procedure
Windshield Multifunction Sensor Mount Bracket Cover Replacement (without UHX) , or Windshield Multifunction Sensor Mount Bracket Cover Replacement (with UHX)

Front View Driver Information Camera Bracket

Procedure

Release the retaining tabs and slide the bracket upward to disengage pins. Gently pull from windshield.
Transfer components as necessary.
Ensure the inside of the windshield is clean before reinstalling the bracket.

NOTE:

Do Not remove or service the sensor farm pins.
