Removal Procedure

WARNING: This page is about a different car, the 2022 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.
  1. Front Floor Panel Carpet - Right Side - Remove - Front Floor Panel Carpet Replacement - Right Side
  2. Disconnect the electrical connectors.

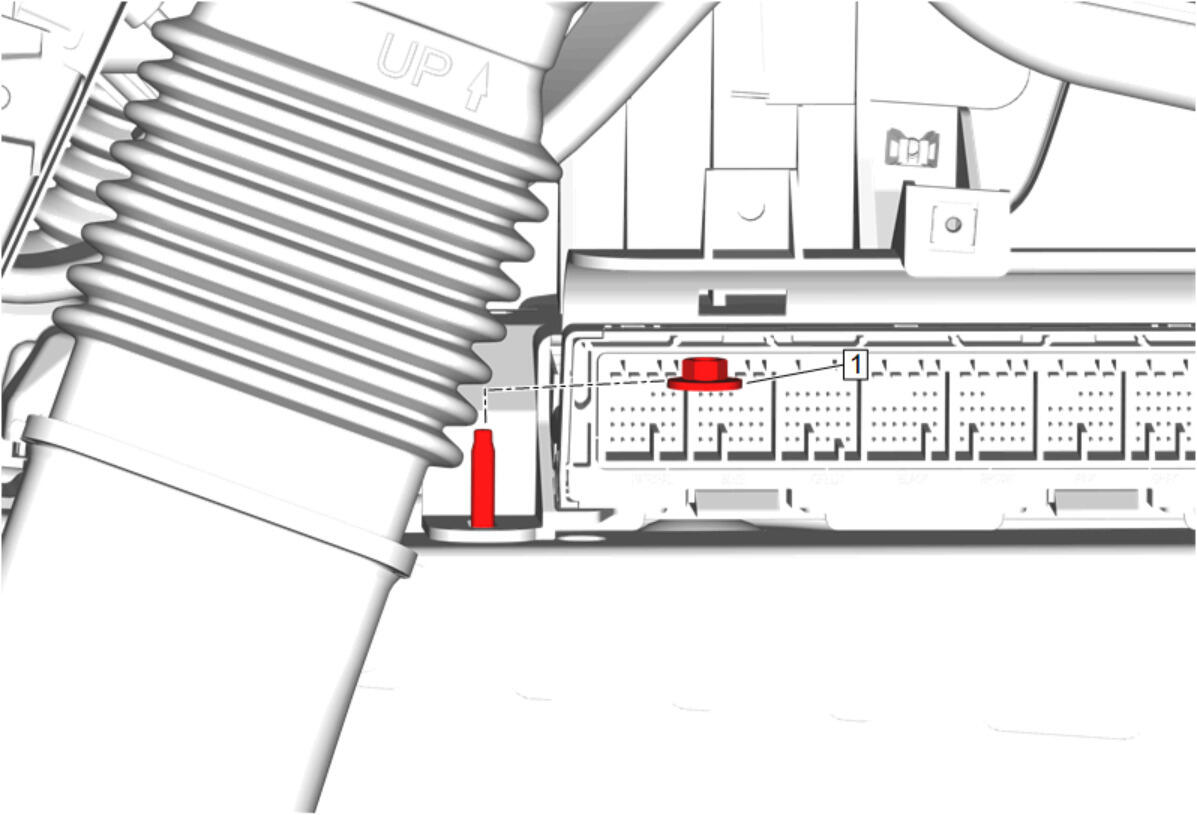

    GM5065555Courtesy of GENERAL MOTORS COMPANY
  3. Reposition the wiring harness.
  4. Body Control Module Bracket Nut (1) - Remove
  5. Body Control Module Bracket (1) - Remove

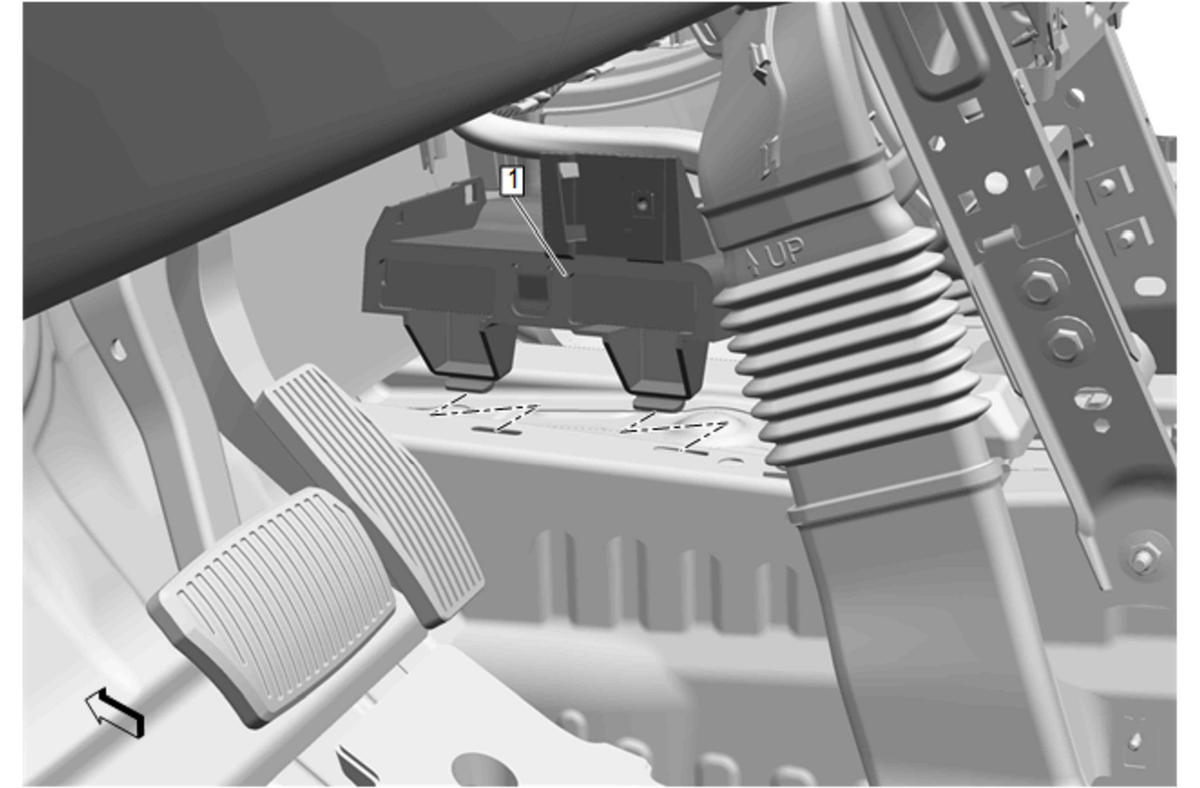

    GM5606349Courtesy of GENERAL MOTORS COMPANY
  6. Transfer components as necessary.
