Wireless Charging System Module Replacement
WARNING: This page is about a different car, the 2022 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

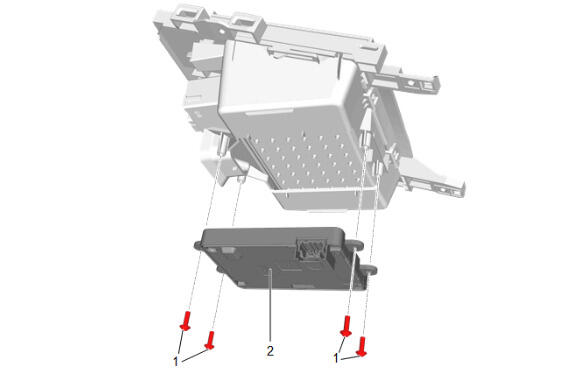

Callouts in the following chart represent components shown in graphic above.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Front Floor Console Center Compartment Replacement |
|
| 1 | Wireless Charging System Module Bolt [4x]
CAUTION:
Tighten 1 N.m (9 lb in) |
| 2 | Wireless Charging System Module |
