Forward Range Radar Sensor Replacement

WARNING: This page is about a different car, the 2022 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

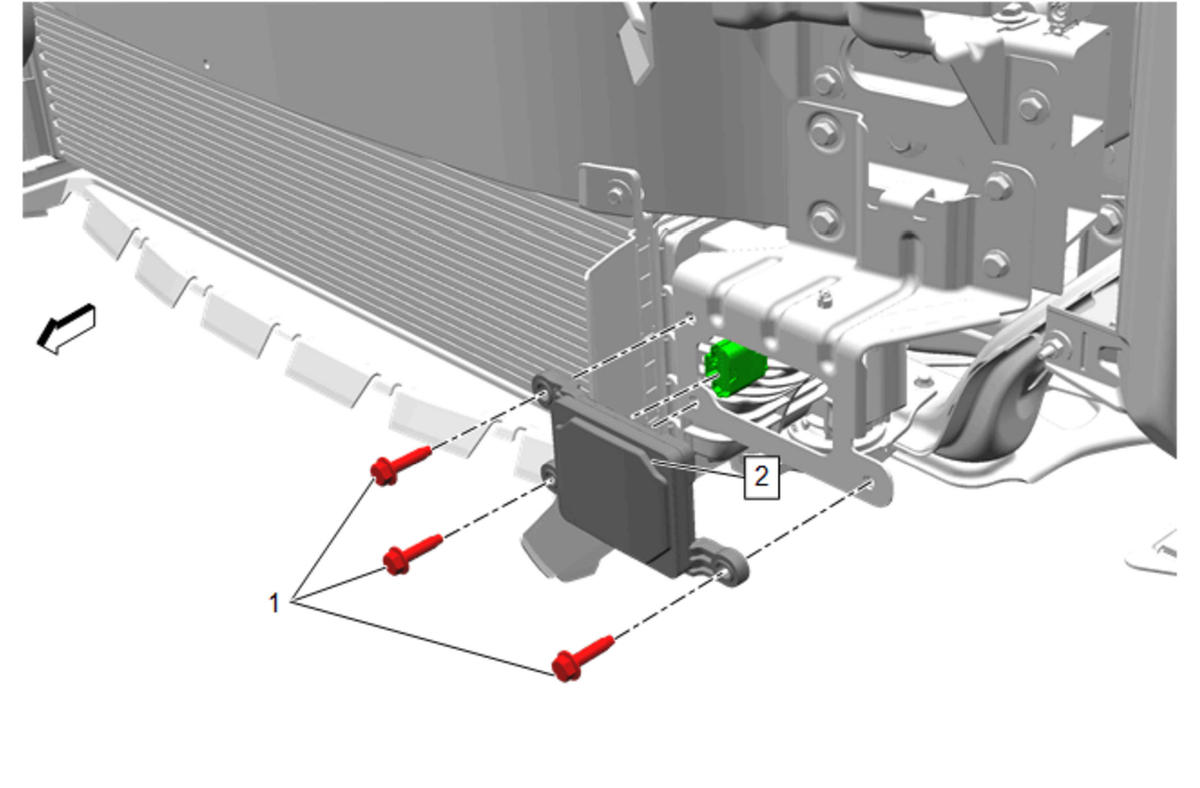

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure Front Bumper Fascia Removal and Installation
1	Forward Range Radar Sensor Nut [3x] CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Forward Range Radar Sensor Procedure Disconnect the electrical connector. Perform the necessary programming and setup procedure:Control Module References

Callout

Component Name

Preliminary Procedure
Front Bumper Fascia Removal and Installation

Forward Range Radar Sensor Nut [3x]

CAUTION:

Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

Forward Range Radar Sensor

Procedure

Disconnect the electrical connector.
Perform the necessary programming and setup procedure:Control Module References
