Installation Procedure

  1. Install the steering wheel. (1)
    GM5548847Courtesy of GENERAL MOTORS COMPANY
  2. Connect the electrical connector.
  3. If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps:

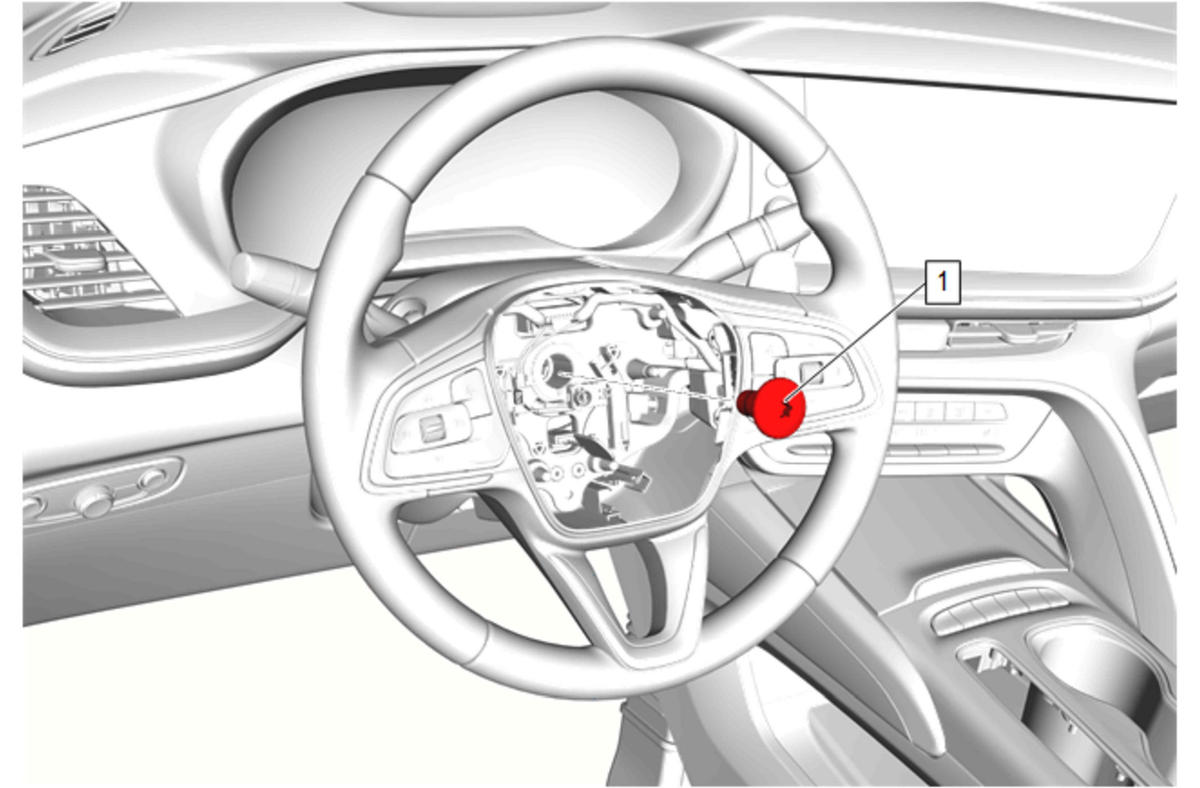

    GM5548846Courtesy of GENERAL MOTORS COMPANY
    1. Remove any loose cured adhesive from the external threads of the component using a lint free cloth.
    2. Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive. (1)
    3. Apply thread locking adhesive to the external threads of the component. (1) Adhesives, Fluids, Lubricants, and Sealers
    4. Ensure there are no gaps in the thread locking adhesive once applied to the component.
  4. Steering Wheel Bolt (1) - Install and tighten 45 N.m (33 lb ft)

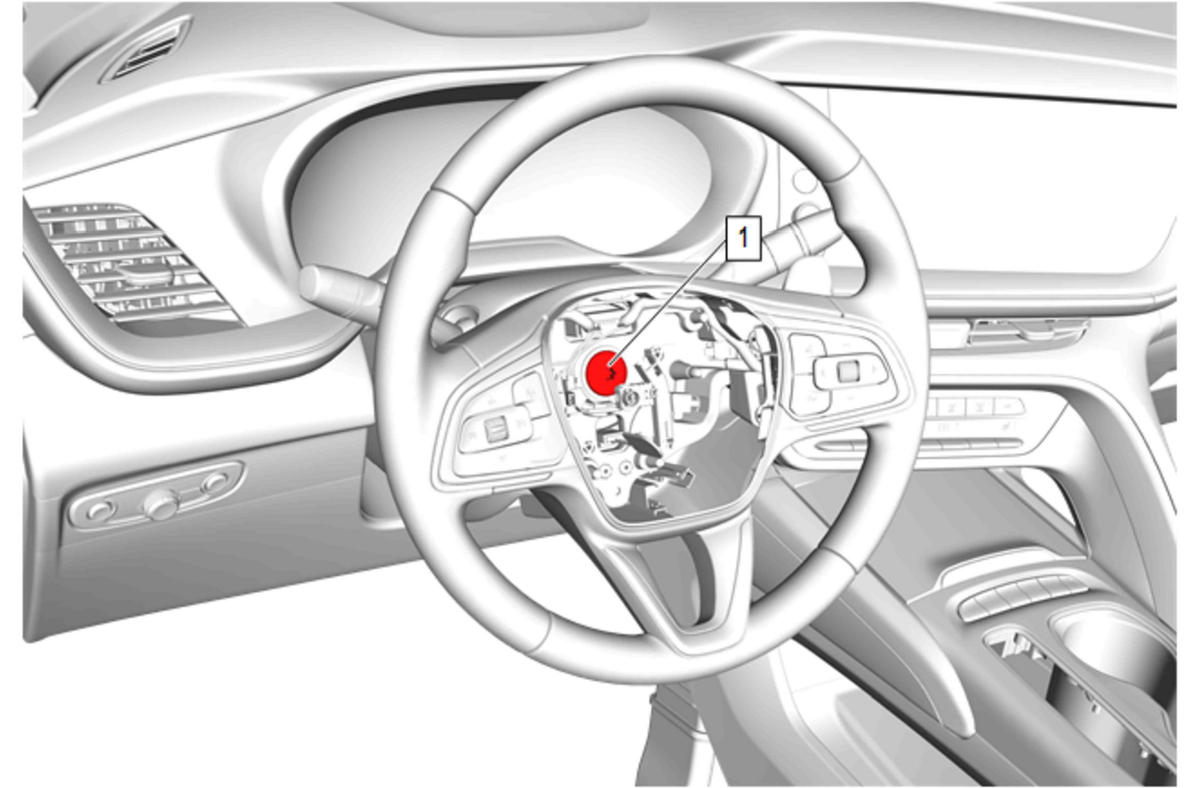

    GM5548845Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Fastener Caution .

  5. Steering Wheel Airbag (2) - Install - Steering Wheel Airbag Replacement
    GM5548842Courtesy of GENERAL MOTORS COMPANY
