Home
>>
Buick
>>
2024
>>
Envision Preferred
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Anti-Theft Systems
>>
Keyless Entry System And Remote Functions
>>
Schematic Wiring Diagrams
>>
Remote Function Wiring Schematics
>>
Keyless Entry - Active
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

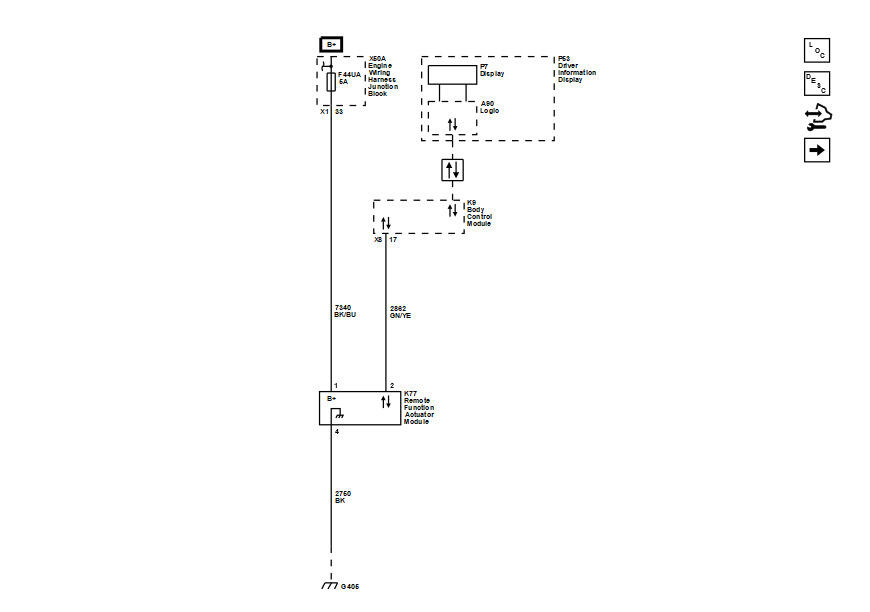

Keyless Entry - Active
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
