Removal Procedure

  1. Reposition the quarter window trim finish panel. - Quarter Window Trim Finish Panel Replacement

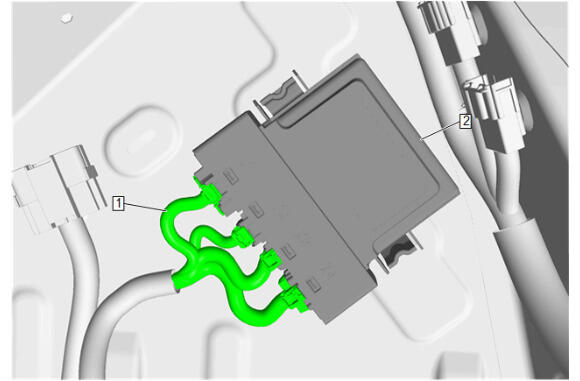

  2. GM6407228Courtesy of GENERAL MOTORS COMPANY

    Disconnect all electrical connectors (1).

  3. Rear Gate Module (2) - Remove
